Aquilion ONE PRISM Edition
Aquilion ONE PRISM Edition

Innovate. Illuminate. Initiate.

Driving Efficiency with Workflow Automation

New User Experience*

Adding more AI-assisted technologies to the Aquilion ONE / PRISM Edition with a new user experience*, offering improved workflow automation to boost consistency and increase efficiency for more confident diagnosis.

  • Intuitive operation and easy to learn
  • Improved accuracy and consistency
  • Intelligent and integrated automated workflows

Featuring:

  • New UX with a compact scan control system and 27-inch 4K monitor.
  • Scan with confidence starting on day one, with simplified AI-assisted workflow tools that improve consistency.
  • Industry first, low-dose, 3D Landmark Scanogram enabling robust Anatomical Landmark Detection (ALD) technology to automatically plan scan ranges and parameters.
  • Intuitive, efficient, faster patient throughput and streamlined experience that saves time and removes variability between technologist.

* Option

Precise IQ Engine (PIQE) 1024* DLR

Super Resolution1

PIQE 10241 DLR maximizes the inherent resolution of a CT to provide Super Resolution1 images without comprising on image noise, temporal resolution or dose.

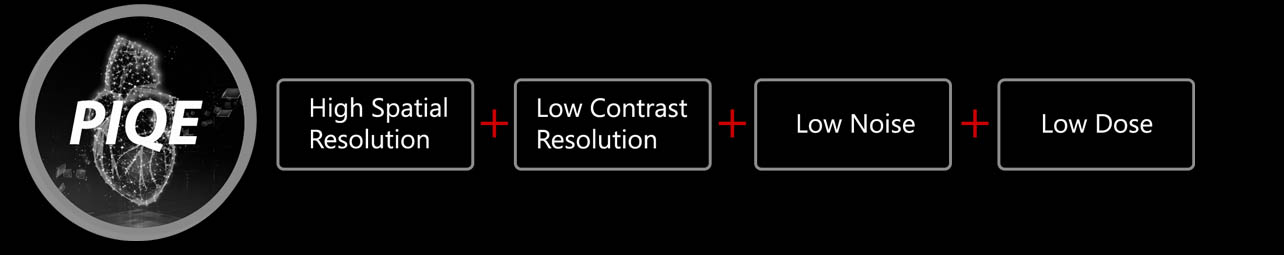

PIQE = High Spatial Resolution + Low Contrast Resolution + Low Noise + Low Dose
Precise IQ Engine (PIQE) 1024 DLR
PIQE 1024 Cardiac

PIQE 1024* Cardiac delivers sharper images for better visualization of stents, calcification and plaque.

PIQE 1024 Body

PIQE 1024* Body provides images with less noise and sharp borders between lesions seen in the liver or kidneys.

PIQE 1024 Lung

PIQE 1024* Lung2 provides sharp anatomical detail for improved visualization of the lung parenchyma, without dose penalties.

* Option
1 PIQE is designed to fully utilize the maximum resolution of the detector.
2 PIQE Lung based upon NEQ measurements, e.g. increase in NEQ by a factor of X (range y – z) for frequencies above 0.5 lp/mm for a 320mm FOV at an SSDE of 9mGy.
These results are based upon the customer’s specific experience. Clinical results are the experience of the author. Results may vary due to clinical setting, patient presentation and other factors.

Sharp, Clear and Distinct Images at Low Doses

Advanced intelligent Clear-IQ Engine (AiCE).

Powered by Altivity

Deep Learning Reconstruction (AiCE) delivers our best low-contrast resolution ever1, with improved low-contrast detectability, noise and spatial resolution relative to hybrid iterative reconstruction.

AiCE DCNN

1 1.5mm @ 0.3%, 22.6 mGy for Genesis. 1.5mm@ 0.3%, 21.8 mGy for Prime SP.

AiCE DLR

Filtered Back Projection

AiCE DLR

Cardiac Excellence

Every heart, Covered.

Cardiovascular disease is on the rise. In fact, one person dies every 33 seconds in the United States from cardiovascular disease.* With CT positioned as a first-line diagnostic tool addressing the evolving needs of cardiac imaging, your ability to deliver high quality, consistent CT studies is critical to outcomes. Your patients deserve the best technology available, and so do you. Canon Medical—the creator of one-beat cardiac CT—delivers.

Learn More

* Center for Disease Control and Prevention, Website 2023

Every heart, Covered

Variable Helical Pitch with three phases (vHP3)*

Enables multiple specialized studies within a single scan.

vHP 3-Phase* allows three scans to be performed in a single acquisition, seamlessly transitioning between scan parameters optimized for each body region. vHP 3-Phase* has potential for less contrast media1 and lower radiation dose by providing the flexibility to seamlessly transition:

  • Between ECG Gating on and off during a cardiac scan
  • Between dose and image quality during a CAP scan
  • Between fast and detailed pitch during a trauma scan

* Option, Available on Aquilion ONE / INSIGHT Edition, Aquilion ONE / Prism Edition, Aquilion ONE / GENESIS Edition, Aquilion Serve SP and Aquilion Prime SP
1 Optimization of contrast usage is only recommended within the dosing ranges that appear in approved iodinated contrast drug labeling.

SilverBeam

Details of a CT at the dose on the order of an x-ray exam

SilverBeam combined with Advanced intelligent Clear-IQ Engine (AiCE) DLR enabling ultra low dose lung cancer screening CTs with doses on the order of a chest x-ray examination.

SilverBeam, a beam shaping energy filter, leverages the photo-attenuating properties of silver to selectively remove low energy photons from a polychromatic x-ray beam leaving an energy spectrum optimized for lung cancer screening.

Watch Video

SilverBeam Clinical Example

Effective Dose 0.3 mSv

Image Courtesy: Dr. M Chen, NHLBI, National Institutes of Health, USA

Stroke Assessment in Under 5 Minutes*

When time is brain, every second counts

Wide-area CT comprehensive stroke evaluation with whole brain1 perfusion with 4D digital subtraction* angiography of the intracranial circulation can be obtained in just one minute.

Evaluate flow and perfusion defects with 4D brain perfusion2 Vitrea software to make the appropriate treatment decision in under five minutes*.

Technology Highlights:

  • 320 detector row system, 0.5mm x 3201
  • Up to 640 slices with coneXact* double slice reconstruction 16 cm z-axis ultra-high-resolution coverage1
  • Advanced Clear-IQ Engine (AiCE) Deep Learning Reconstruction
  • Vitrea Advanced Visualization*2

* Option
1 Available on the Aquilion ONE / INSIGHT Edition, Aquilion ONE / Prism Edition, Aquilion ONE / Genesis Edition
2 Available with Vitrea Advanced Visualization
Images Courtesy of Radboud UMC, Nijmegen, The Netherlands

Deep Learning Spectral*

World's first Spectral Deep Learning reconstruction

16 cm1 Wide-Area
Spectral CT

16 cm Wide-Area Spectral CT
Deep Learning Spectral

An extensive suite of
Spectral analysis applications2

An extensive suite of Spectral analysis applications

Full Spectral Transformation

The advantage of Deep Learning Spectral reconstruction is it's ability to transform multi-energy raw data sets into two full high and low energy separated sinograms. This provides excellent energy separation for Spectral analysis with the high resolution and low noise properties you would expect from a routine diagnostic CT exam.

* Option
1 Available on Aquilion ONE / INSIGHT Edition, Aquilion ONE / Prism Edition, Aquilion ONE / GENESIS Edition
2 In combination with Vitrea® Advanced & Visualization

CT Guided Interventions*

Simple and Streamlined

Optimize interventional procedures with our new hybrid CT touch-panel*1 interface for CT guided interventions that enables one-handed operation thanks to ergonomically designed controls and a versatile touchscreen tablet.

Plus, with Canon Medical's iterative reconstruction you now have real-time access to the high-quality low-dose images.

Learn More

* Option
1 Hybrid Touch Panel CT Fluoroscopy is available on Aquilion ONE / INSIGHT Edition, Aquilion ONE / PRISM edition, Aquilion Serve SP, Aquilion Prime SP, Aquilion Exceed LB and Aquilion Lightning.

CT Guided Interventions

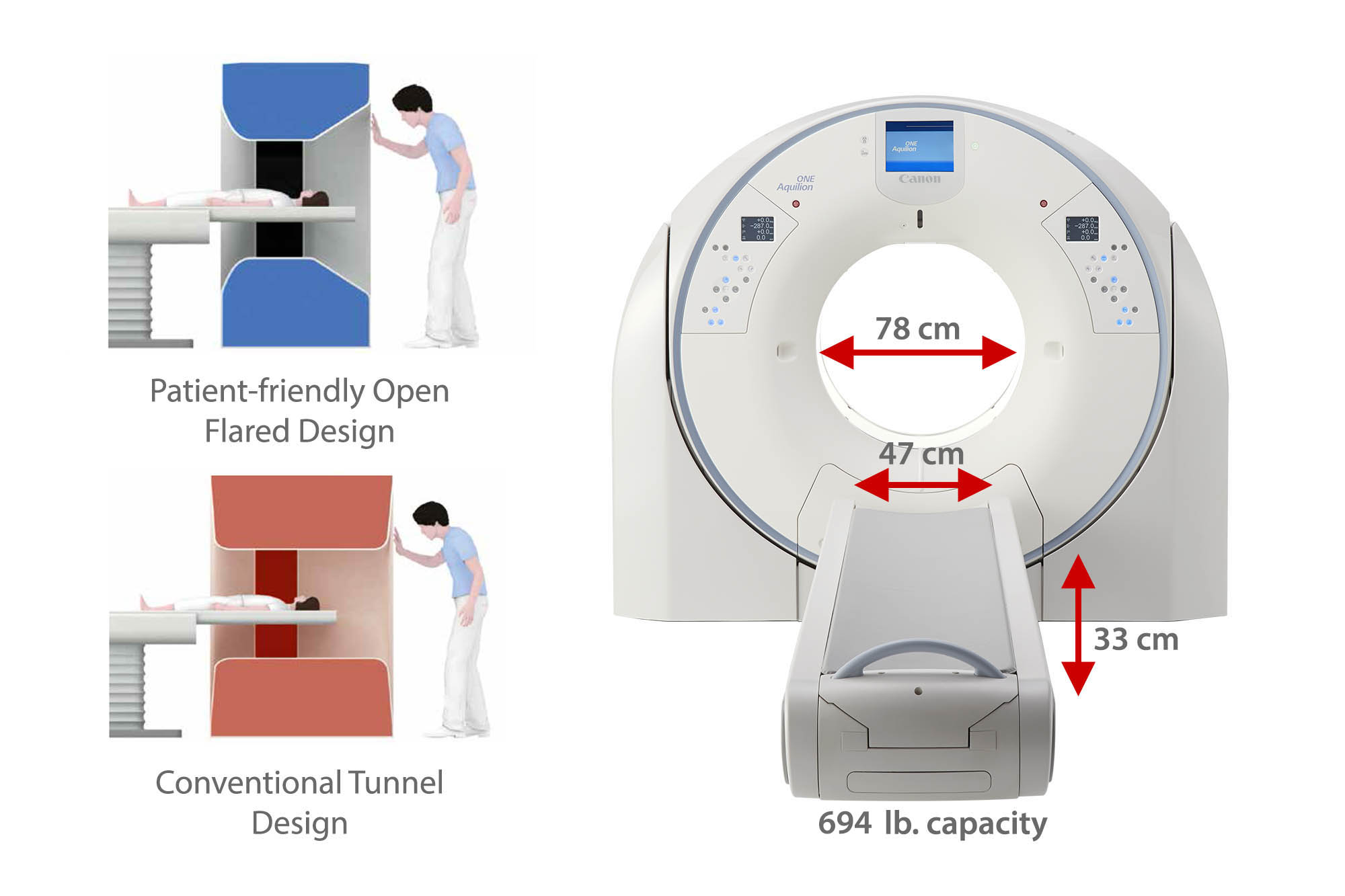

Patient Centric Design

  • A unique flared gantry providing a calming, wide-open space for a better1 patient experience
  • Improved access to your patients from the front and rear of the gantry
  • Improving safety during trauma and interventional procedures

1 Compared to competitive systems

Conventional tunnel design

Conventional tunnel design

Patient-friendly open flared design

Patient-friendly open flared design

Tech Assist Lateral Slide1

A couch designed for patient and technologist safety.

Advanced Couch Design1 improves safety and comfort by providing a tool to mechanically move the patient to the correct position with the push of a button. Tech Assist Lateral Slide helps reduce the risk of injury to the patient and the technologist.

Tech Assist Demo

1 Optional

Tech Assist Lateral Slide

Once on the table, perfect positioning—no push, no pull.

SUREPosition

Helps reduce rescans in time critical situations.

  • Accurately center and position the patient by scan plan GUI
    • Up-Down
    • Left-Right (option with Tech Assist Lateral Slide)*
  • Provides the ability to always perform iso-center scanning for best IQ, without re-centering and re-scanning the patient
  • System generates new (virtual) scanogram—never repeat scanogram

* Option

Compact Design

Economize on space, not on performance.

  • Smaller, lighter and requires less power than other premium CT systems
  • Designed for an installation space of just 19 m2* (204 sq ft)
  • Can be installed into most existing CT rooms, avoiding costly renovations
204 square ft Installation Space, 125 kVA Power Capacity, 5,159 lb Gantry Weight

* Dependent on system configuration
