Sharable across multiple compatible systems for increased value.

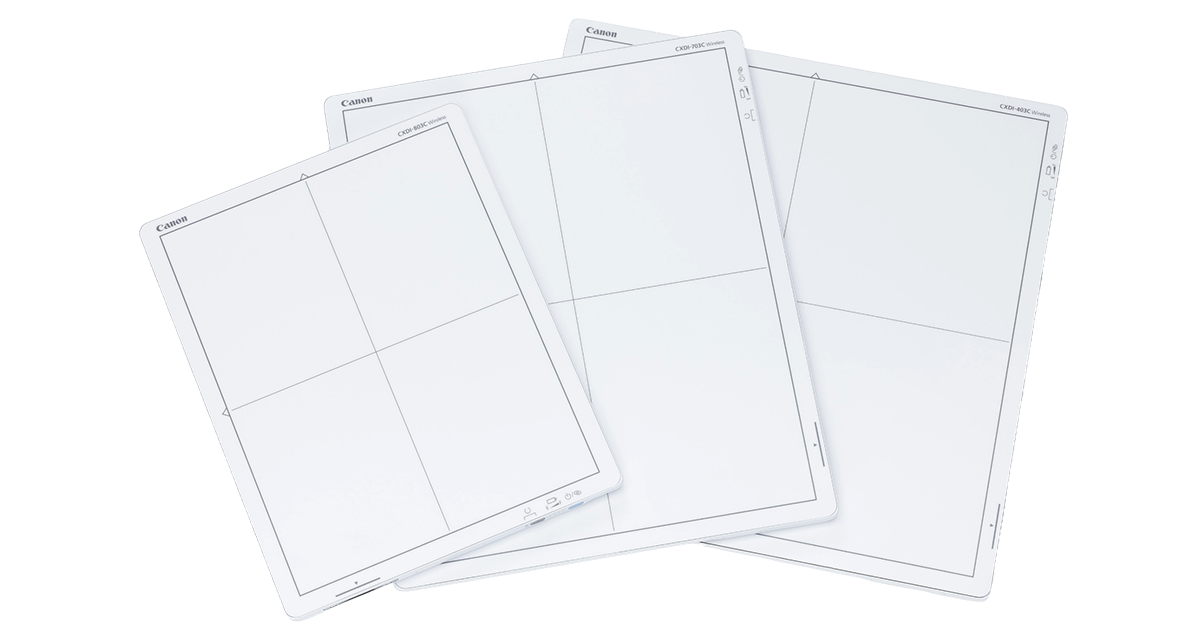

The New Series of Canon CXDI Digital Radiography Systems
- Lightweight and durable carbon fiber design with ergonomic handgrips molded into the detector for easy handling
- CXDI Control Software NE is made exclusively for use with Canon Digital Radiography Systems and helps optimize workflow and reduce steps needed to complete exams
- IPX7* rated for submersion in water up to 1 meter for 30 minutes
- Amorphous Silicon (a-Si) with Cesium Iodide (CsI) scintillator
- Limited, temporary on-board image storage capability when operated in Standalone Mode.**
- The new Canon detectors are among the lightest weight detectors currently available
- Optional CXDI-Docking Station enables rapid battery charging while in the detector
- Preview Image Time: Approx. 1 second
- Multifunction docking station available
- Pixel pitch: 125 μm
- A/D: 16-bit
*An IPX7 rating does not indicate compliance with, and the detectors have not been tested for compliance with, any other IPX ratings. **Restrictions and limitations apply.
Shown with optional Docking Station, sold separately.
The New Series of Canon CXDI Digital Radiography Systems
CXDI-810C Wireless Digital Radiography Systems*
Sharable across multiple compatible systems for increased value.
- Pixels: 2,800 x 2,192 pixels (6.1 megapixels)
- Imaging Area: Approx. 14" x 11"
- Dimensions: Approx. 15" x 12" x 0.6"
- Weight: 3.97 lb (with battery)
*Optional
The New Series of Canon CXDI Digital Radiography Systems
CXDI-710C Wireless Digital Radiography Systems
Sharable across multiple compatible systems for increased value.
- Pixels: 2,800 x 3,408 pixels (9.5 megapixel)
- Imaging Area: Approx. 14" x 17"
- Dimensions: Approx. 15" x 18" x 0.6"
- Weight: 5.07 lb (with battery)
The New Series of Canon CXDI Digital Radiography Systems
CXDI-410C Wireless Digital Radiography Systems
Sharable across multiple compatible systems for increased value.
- Pixels: 3,320 x 3,408 pixels (11.3 megapixels)
- Imaging Area: Approx. 17" x 17"
- Dimensions: Approx. 18" x 18" x 0.6"
- Weight: 6.17 lbs. (with battery)
Streamlined workflow.
CXDI Control Software NE
CXDI Control Software NE is made exclusively for use with Canon Digital Radiography Systems and helps to optimize workflow and reduce steps needed to complete exams.
- Stitching—up to 4 images
- Windows® 7 and Windows® 10 Supported
- Improved noise reduction capability over earlier CXDI models
- IHE and HIPAA Compliant
- DICOM® Structured Dose Reporting
- Support Windows Defender, McAfee VirusScan Enterprise +, AntiSpyware Enterprise 8.8, and ESET Endpoint Anti-Virus 6.3.
- Scatter Correction Feature for non-grid exams (sold separately)
The New Series of Canon CXDI Digital Radiography Systems
Cesium Iodide (CsI) Scintillator FPDs
Imaging efficiency.
High Detective Quantum Efficiency (DQE) DR technology provides high-quality diagnostic images at significantly reduced dose levels as compared to film and CR technologies.
The New Series of Canon CXDI Digital Radiography Systems
Reject Log
Enhanced quality control.
- Generates a report (.cvs format) including number of rejected exposures and reason for rejection
- Supports quality assurance by helping you monitor and manage additional exposures
The New Series of Canon CXDI Digital Radiography Systems
Exposure Index
Optimize imaging techniques.
- This histogram is displayed on the control console display
- Used to help you optimize image quality and dose
The New Series of Canon CXDI Digital Radiography Systems
Scatter Correction Software*
Grid-free imaging.
The Scatter Correction software feature of the CXDI Digital Control Console eliminates the need to use an anti-scatter grid during certain types of X-ray examinations.
Without a grid, the technology helps lighten the load for technologists and makes positioning comfortable for patients.
The Scatter Correction feature is designed to help radiology staff work efficiently without the need to use a grid for certain types of X-ray examinations.
Helps eliminate the need to align the grid can help shorten exam times and increase productivity.
*Optional
The New Series of Canon CXDI Digital Radiography Systems
Stitching Software
Seamless imaging solution.
Stitching allows up to four images to be combined into one large image to assist with diagnosis (e.g. spine, legs, etc.).
The New Series of Canon CXDI Digital Radiography Systems
Enhanced Visualization Processing (EVP)
See the difference.
Enhanced Visualization Processing (EVP) enhances fine lines to allow clinicians to accurately view PICC lines, catheters, etc.
