Advanced imaging simplified.
Image Gallery
Aquilion ONE / INSIGHT Edition
Introducing the all-new Aquilion ONE / INSIGHT Edition. Built from the ground-up with our next-generation gantry and optics, the latest Deep Learning Reconstruction technology, and PIQE 10241.
1Option

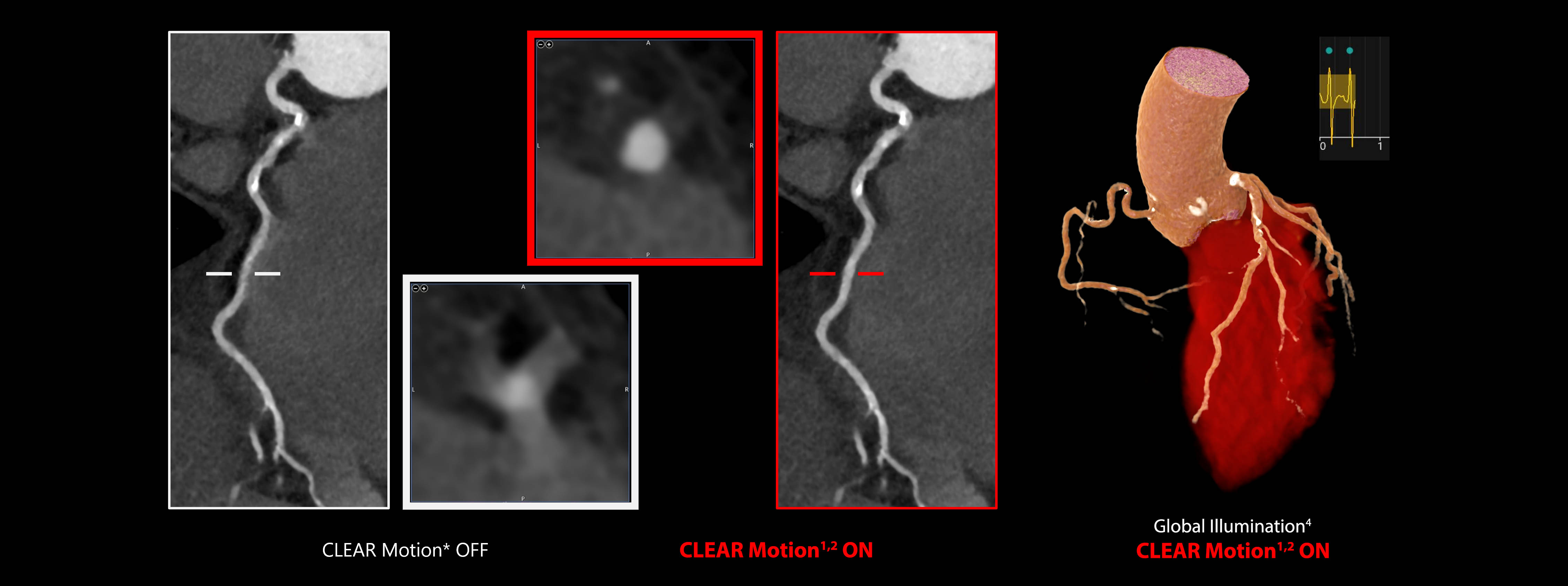

CLEAR Motion1, 2 for High Heart Rates
Aquilion ONE / INSIGHT Edition
175 BPM
Take one-beat cardiac imaging to a new level of clinical confidence with CLEAR Motion1, 2. A fully automated raw data based motion compensation that uses a motion vector map to produce reconstructions of only 14 ms resolution.
1 Option
2 CLEAR Motion is available for Cardiac and Lung on the Aquilion ONE.
3 Global Illumination is a purchasable option, available in combination Vitrea® Advanced Visualization.
Courtesy Prof. Roy and Prof. Ohana, University Hospital of Strasbourg, France.

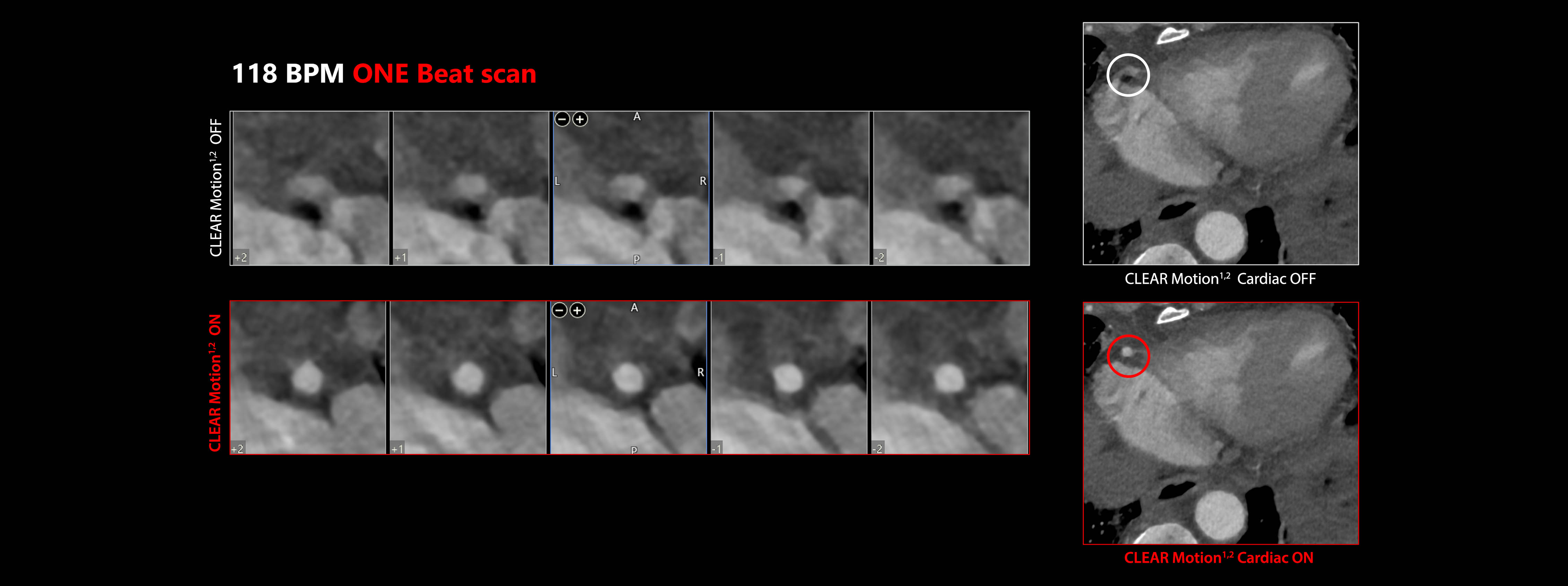

CLEAR Motion1, 2 for High Heart Rates
Aquilion ONE / INSIGHT Edition
118 BPM
1 Option
2 CLEAR Motion is available for Cardiac and Lung on the Aquilion ONE.
Courtesy Prof. Roy and Prof. Ohana, University Hospital of Strasbourg, France.
CLEAR Motion1, 2 Cardiac with DLR
Aquilion ONE / INSIGHT Edition
CLEAR Motion1, 2 Cardiac employs a deep learning-based raw data motion correction, reducing motion artifacts in ECG gated studies.
Compatible with PIQE 10241 Cardiac and AiCE Cardiac DLR to uniquely combine motion correction, noise reduction, and Super Resolution3 in the reconstruction domain.
1 Option
2 CLEAR Motion is available for Cardiac and Lung on the Aquilion ONE.
3 PIQE is designed to fully utilize the maximum resolution of the detector.
Courtesy Dr Chen, National Institutes of Health, USA.
The clinical results, performance and views described are the experience of the clinician. Results may vary due to clinical setting, patient presentation and other factors.

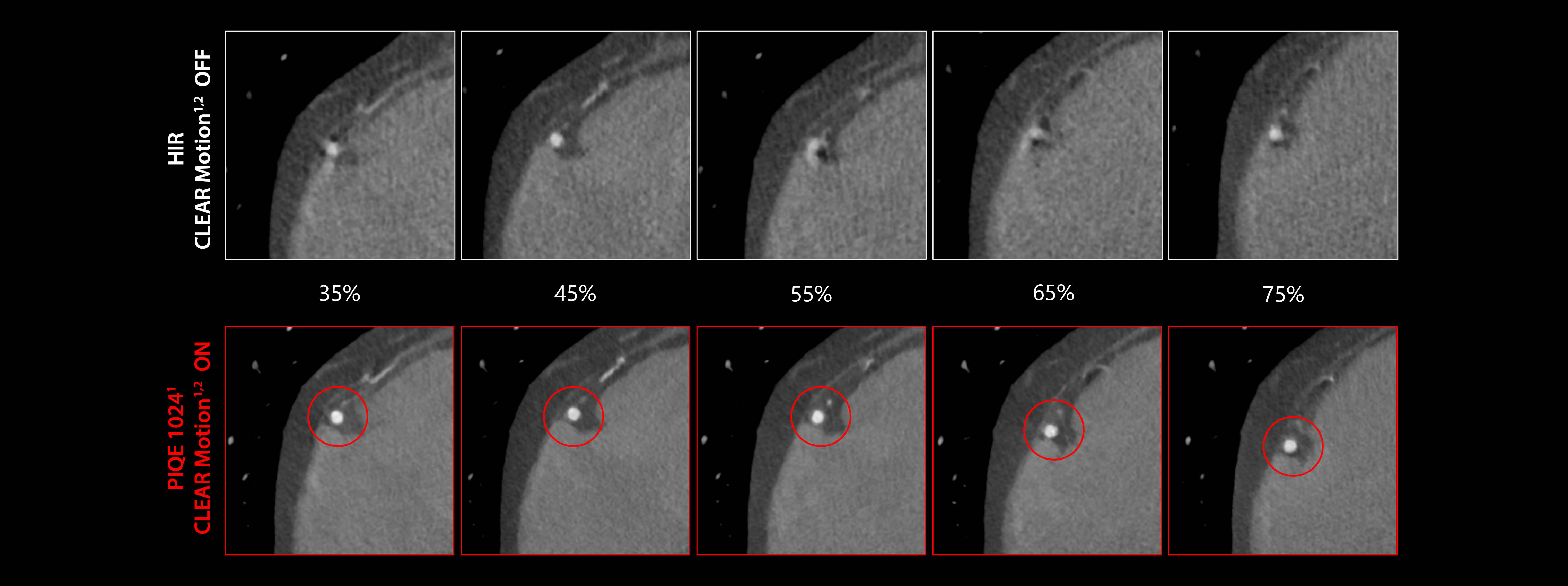

CLEAR Motion1, 2 Across Every Phase
Aquilion ONE / INSIGHT Edition
CLEAR Motion1, 2 is raw-data based motion correction that can be applied across all phases of the cardiac cycle delivering the natural movement of the coronary vessels without motion artifact.
1 Option
2 CLEAR Motion is available for Cardiac and Lung on the Aquilion ONE.
Courtesy Prof. Roy and Prof. Ohana, University Hospital of Strasbourg, France.

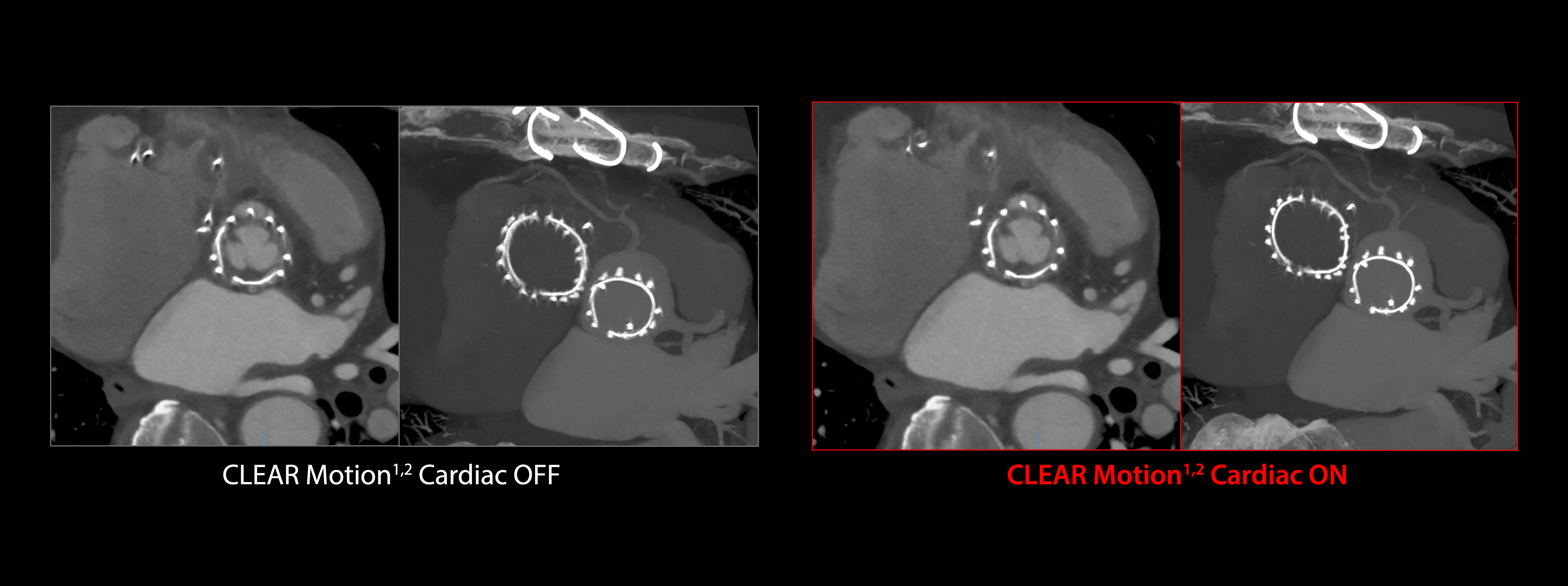

CLEAR Motion1, 2 Aortic and Mitral Valve Replacements
Aquilion ONE / INSIGHT Edition
CLEAR Motion1, 2 helps reduce motion artifacts, enabling clinicians to evaluate valve replacements and surrounding cardiac tissue with greater confidence.
1 Option
2 CLEAR Motion is available for Cardiac and Lung on the Aquilion ONE.
Courtesy Dr Chen, NHLBI, National Institutes of Health, USA.
Mixed plaque in RCA
Aquilion ONE / INSIGHT Edition
The increased resolution of PIQE 1024* improves the accuracy of CAD-RADs scorings.1
Courtesy of Dr. Tatsugami, Hiroshima University, Japan
View Scan Parameters
| Heart Rate | Scan Mode | kVp | mAs | Reconstruction | CTDIvol | DLP | Effective Dose† |
|---|---|---|---|---|---|---|---|
| 59 BPM | Volume | 120 | SUREExposure | PIQE 1024 | 12.2 mGy | 195.5 mGy·cm | 2.7 mSv |
†AAPM Report 96, k-factor 0.014
* Option
1 Canon CT White Paper - Cardiac CT with Precise IQ Engine (PIQE) 1024 Matrix in Clinical Practice, by Dr. Marcus Chen, Dr. Mickael Ohana, Dr. Fuminari Tatsugami. These results are based upon the customer’s specific experience. There is no guarantee that other sites will achieve the same results due to variations in clinical setting, patient presentation and other factors.

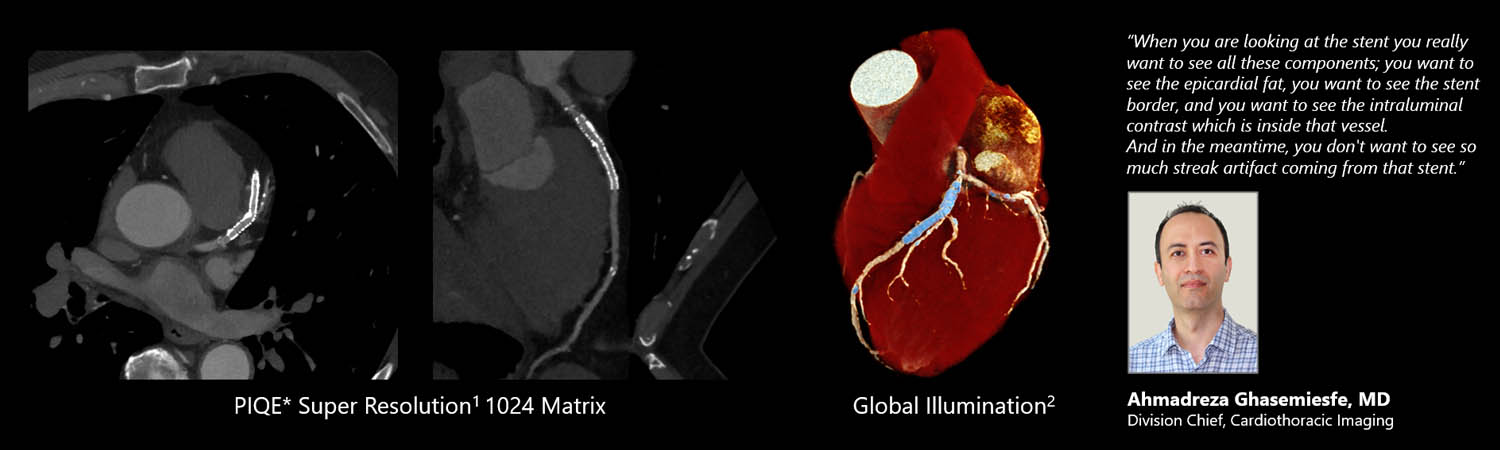

LAD Stent with PIQE 1024
Aquilion ONE / INSIGHT Edition
Deliver Super-Resolution1 details with PIQE* 1024 providing increased spatial resolution for clear visualization of the vessel lumen for improved in-stent analysis.
Courtesy of Dr. Reza Ghasemiesfe, UC Davis Medical Center, USA
* Option
1 PIQE is designed to fully utilize the maximum resolution of the detector.
2 Global Illumination is a purchasable option, available in combination Vitrea® Advanced Visualization.
The clinical results, performance and views described are the experience of the clinician. Results may vary due to clinical setting, patient presentation and other factors.
High HR - 111 BPM
Aquilion ONE / INSIGHT Edition
The Aquilion ONE / INSIGHT Edition has 16 cm of whole-heart coverage and ultra-fast 0.24s* rotation speed supporting gating at higher heart rates. Super Resolution1 PIQE Cardiac delivers sharp image quality with reduced calcium blooming artifact for improved diagnostic confidence.
Courtesy of Prof. Ohana, Strasbourg University Hospital, France
View Scan Parameters
| Heart Rate | Scan Mode | mAs | Reconstruction | DLP | Effective Dose† |
|---|---|---|---|---|---|
| 111 BPM | ONEBeat Volume | SUREExposure | PIQE 1024 | 123 mGy·cm | 1.7 mSv |
†AAPM Report 96, k-factor 0.014
* Option
1 PIQE is designed to fully utilize the maximum resolution of the detector.

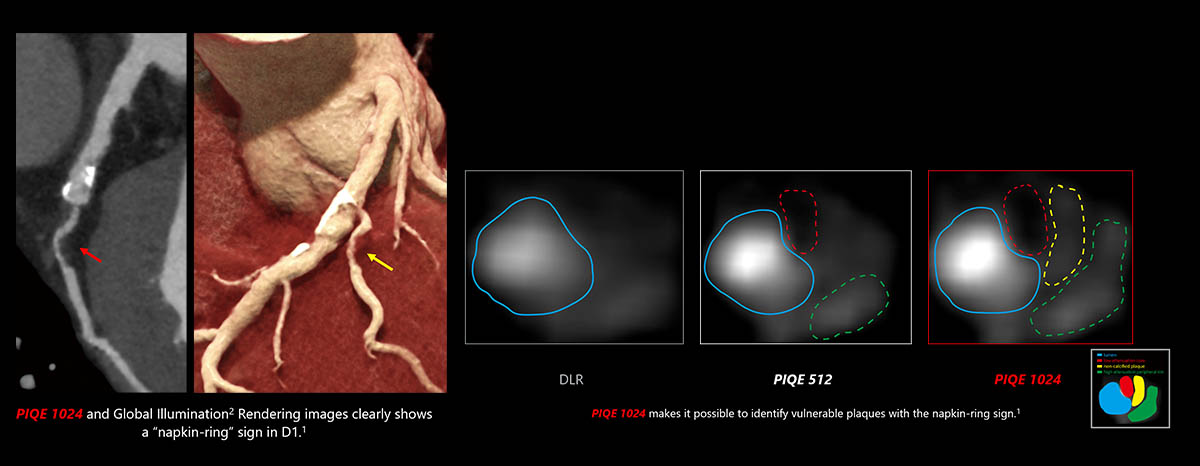

Napkin-Ring Sign D1 - PIQE Cardiac 1024*
Aquilion ONE / INSIGHT Edition
PIQE 1024* could help to identify coronary artery disease in patients at high risk of future acute coronary syndrome events.1
View Scan Parameters
| Scan Mode | Exposure Window | kVp | mAs | Reconstruction | Effective Dose† |
|---|---|---|---|---|---|
| Volume | 0-100% | 120 | SUREExposure | PIQE 1024 | 5.0 mSv |
†AAPM Report 96, k-factor 0.014
* Option
1 Canon CT White Paper - Cardiac CT with Precise IQ Engine (PIQE) 1024 Matrix in Clinical Practice, by Dr. Marcus Chen, Dr. Mickael Ohana, Dr. Fuminari Tatsugami.
2 Global Illumination is a purchasable option, available in combination Vitrea® Advanced Visualization.
Courtesy of Dr. Tatsugami, Hiroshima University, Japan
The views and findings included here are those of the presenter. Clinical settings and other considerations may impact repeating these results.
Cardiac CTA with high Calcium Score (+5000)
Aquilion ONE / INSIGHT Edition
PIQE1 Super Resolution2 DLR reduces blooming artifact from calcified plaques, improving visualization of the coronary arteries for heavily calcified vessels.
Courtesy Prof. Roy and Prof. Ohana, University Hospital of Strasbourg, France
View Scan Parameters
| CTDIvol | DLP | Effective Dose† |
|---|---|---|
| 6.5 mGy | 104 mGy·cm | 1.5 mSv |
†AAPM Report 96, k-factor 0.014
1 Option
2 PIQE is designed to fully utilize the maximum resolution of the detector.
3 Global Illumination is a purchasable option, available in combination Vitrea® Advanced Visualization.
High Resolution Aortic Valve
Aquilion ONE / INSIGHT Edition
With its high spatial resolution, PIQE 1024* provides excellent delineation of the aortic valve leaflets. This can help to improve diagnostic accuracy for the aortic valve evaluation, which can be very beneficial in the planning of transcatheter aortic valve replacement (TAVR).1
Courtesy of Prof. Ohana, Strasbourg University Hospital, France
View Scan Parameters
| Helical | Scan Mode | Exposure Window | kVp | mAs | Reconstruction | CTDIvol | DLP | Effective Dose† |
|---|---|---|---|---|---|---|---|---|
| 51 BPM | ONE-Beat | 0-100% | 100 | SUREExposure | PIQE 1024 | 22 mGy | 351.7 mGy·cm | 4.9 mSv |
†AAPM Report 96, k-factor 0.014
* Option
1 Canon CT White Paper - Cardiac CT with Precise IQ Engine (PIQE) 1024 Matrix in Clinical. Practice, by Dr. Marcus Chen, Dr. Mickael Ohana, Dr. Fuminari Tatsugami.
Personal experience only. Performance referenced has not been confirmed via rigorous clinical studies. There is no guarantee that other sites will achieve the same results due to variations in clinical setting, patient presentation, and other factors.
Bariatric Patient Coronary Evaluation, PIQE 1024*
Aquilion ONE / INSIGHT Edition
Improve Cardiac image quality without dose penalty using the powerful combination of PIQE 1024 Super Resolution1 DLR with the all-new Aquilion ONE / INSIGHT Edition CT scanner. Featuring ONEBeat cardiac capabilities with ultra-fast 0.24 s rotation speed and high 1400 mA tube limit that will deliver high-quality coronary CTA examinations for your patients.
Courtesy of Dr. M. Chen, NHLBI, National Institute of Health, USA
| Scan Mode | Volume |
| kVp | 120 |
| mAs | SUREExposure 3D |
| Reconstruction | PIQE 1024 Cardiac |
| CTDlvol | 11.6 mGy |
| DLP | 139 mGy·cm |
| Effective Dose† | 1.9 mSv |
†AAPM Report 96, k-factor 0.014
* Option
1 PIQE is designed to fully utilize the maximum resolution of the detector.
PIQE Cardiac* with SEMAR
Aquilion ONE / INSIGHT Edition
Metal artifacts can degrade CT image quality. Single Energy Metal Artifact Reduction – SEMAR reduces metal artifact allowing for clear visualization of surrounding soft tissue. SEMAR can be used in combination with Super Resolution1 and AI-powered reconstructions to improve image quality without dose penalty to the patient.
Courtesy of Prof. Ohana, Strasbourg University Hospital, France
View Scan Parameters
| Scan Mode | kVp | mAs | Reconstruction | CTDIvol | DLP | Effective Dose† |
|---|---|---|---|---|---|---|
| Volume | 100 | SUREExposure 3D | PIQE 1024 Matrix | 4.3 mGy | 51.4 mGy·cm | 0.7 mSv |
†AAPM Report 96, k-factor 0.014
* Option
1 PIQE is designed to fully utilize the maximum resolution of the detector.
