Advanced imaging simplified.
Image Gallery
Aquilion ONE / INSIGHT Edition
Introducing the all-new Aquilion ONE / INSIGHT Edition. Built from the ground-up with our next-generation gantry and optics, the latest Deep Learning Reconstruction technology, and PIQE 10241.
1Option

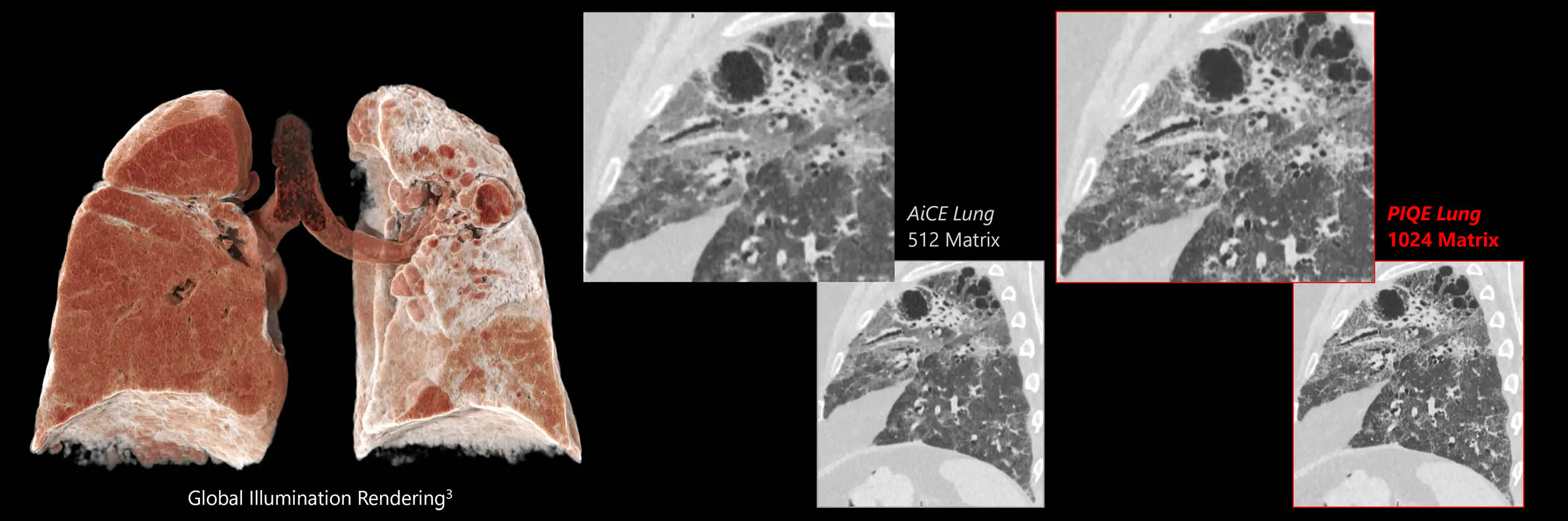

Adenocarcinoma with PIQE Lung1 and SilverBeam Filter
Aquilion ONE / INSIGHT Edition
SilverBeam can be used to reduce noise by attenuating low-energy photons from the x-ray beam. Combine with Super Resolution2 PIQE Lung1 for sharp anatomical detail, without comprising on image noise or dose.
Courtesy Prof. Roy and Prof. Ohana, University Hospital of Strasbourg, France
View Scan Parameters
| Scan Mode | kVp | mAs | Reconstruction | CTDIvol | DLP | Effective Dose† |
|---|---|---|---|---|---|---|
| Helical with SilverBeam | 120 (Ag) | SUREExposure | PIQE | 2 mGy | 74 mGy·cm | 1.0 mSv |
†AAPM Report 96, k-factor 0.014
1 Based upon NEQ measurements. Data available upon request.
2 PIQE is designed to fully utilize the maximum resolution of the detector3 Global Illumination is a purchasable option with Vitrea® Advanced Workstation.

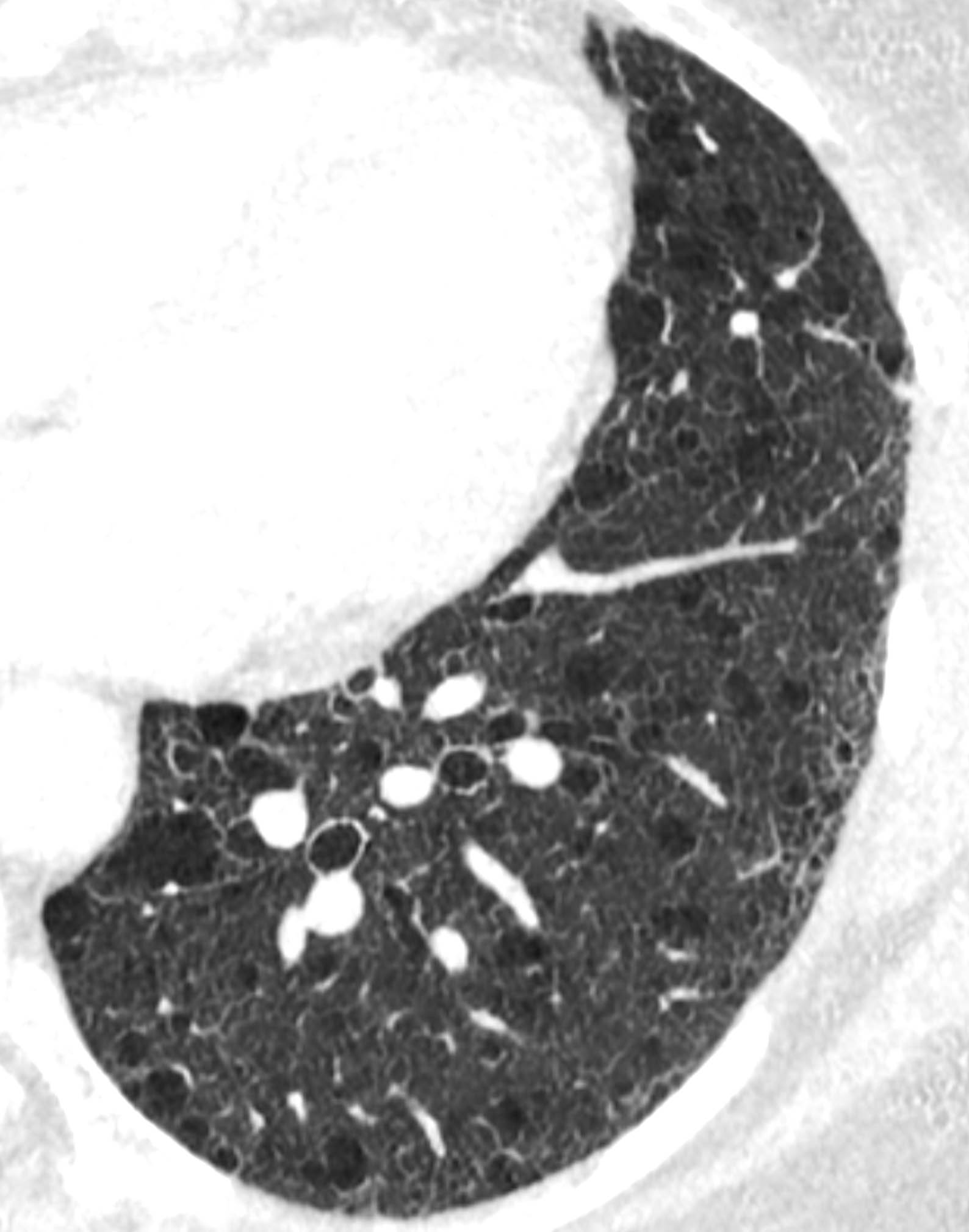

PIQE Lung
Aquilion ONE / INSIGHT Edition
PIQE 1024* Lung is a Super Resolution1 Deep Learning Reconstruction that provides sharp anatomical detail for improved visualization of the lung parenchyma, without dose penalty to the patient.
View Scan Parameters
| Scan Mode | kVp | mAs | Reconstruction | CTDIvol | DLP | Effective Dose† |
|---|---|---|---|---|---|---|
| Volume | 120 | SUREExposure | PIQE 1024 | 4.5 mGy | 130.5 mGy·cm | 1.8 mSv |
†AAPM Report 96, k-factor 0.0145
* Option
1 PIQE is designed to fully utilized the maximum resolution of the detector.
Based upon NEQ measurements, e.g. increase in NEQ by a factor of X (range y – z) for frequencies above 0.5 lp/mm for a 320mm FOV at an SSDE of 9mGy.
SilverBeam Ultra Low Dose Lung Screening
Aquilion ONE / INSIGHT Edition
Broaden access to high-quality, low dose imaging with the Aquilion ONE / INSIGHT Edition CT scanner equipped with SilverBeam, a beam shaping filter that optimizes the x-ray spectrum for ultra low-dose lung cancer screening scans.
View Scan Parameters| Scan Mode | kVp | mAs | Reconstruction | CTDlvol | DLP | Effective Dose† |
|---|---|---|---|---|---|---|
| Helical | 120 w/ SilverBeam | SUREExposure | AiCE | 1.3 mGy | 37.4 mGy·cm | 0.5 mSv |
†AAPM Report 96, k-factor 0.014
Courtesy of Dr. Bull, Bournemouth, UK
The views and findings included here are those of the presenter. Clinical settings and other considerations may impact repeating these results.
Metastatic Evaluation - CAP with IV and Oral Contrast PIQE 1024* Body
Aquilion ONE / INSIGHT Edition
Improve diagnostic confidence with Super Resolution1 Precise IQ Engine Deep Learning Reconstruction, PIQE 1024* images that provide visualization of small structures without additional radiation dose.
This patient was scanned for a CT chest, abdomen and pelvis with intravenous and oral contrast for metastatic staging evaluation.
Courtesy of Dr. M. Chen, NHLBI, National Institute of Health, USA
| Scan Mode | kVp | mAs | Reconstruction | CTDIvol | DLP | Effective Dose† |
|---|---|---|---|---|---|---|
| Helical | 120 | SUREExposure | PIQE 1024 Body | 6 mGy | 385 mGy·cm | 5.5 mSv |
†AAPM Report 96, k-factor 0.0145
* Option
1 PIQE is designed to fully utilize the maximum resolution of the detector.
Liver Iodine Mapping with SURESubtraction and PIQE 1024 Body
Aquilion ONE / INSIGHT Edition
Precise IQ Engine (PIQE) 1024 Super Resolution1 is a Deep Learning Reconstruction algorithm that maximizes the inherent resolution of a CT to provide super resolution images for body examinations without comprising on image noise or dose. Overcome the challenges of visualizing small structures without additional radiation dose with PIQE 1024.
Use SURESubtraction to enhance multiphasic abdominal exams with Iodine mapping overlays to increase the conspicuity of enhancing lesions requiring no change to your protocol, and no increase in dose. Enhanced Iodine imaging with PIQE 1024 provides fully automatically iodine mapping and bone removal directly to your reading station.
Courtesy of Dr. M. Chen, NHLBI, National Institute of Health, USA
| Scan Mode | Ultra Helical |
| Collimation | 0.5 mm x 80 |
| kVp | 120 |
| mAs | SUREExposure 3D |
| Reconstruction | PIQE 1024 Body |
| CTDlvol | 4.8 mGy Art / 4.6 mGy Ven |
| DLP | 126.6 mGy·cm Art / 308.9 mGy·cm Ven |
| Effective Dose† | 1.9 mSv Art / 4.6 mSv Ven |
†AAPM Report 96, k-factor 0.015
1PIQE is designed to fully utilize the maximum resolution of the detector.
Iodine mapping with PIQE 1024
Chest CT at 70 kV with CoolNovus X-ray Tube, PIQE 1024 Body and AiCE Lung
Aquilion ONE / INSIGHT Edition
Gain deeper insights for oncology with the all new CoolNovus x-ray tube and power of AI with Deep Learning Reconstructions.
Designed for precision operation, CoolNovus x-ray tube delivers low 70 kV scanning abilty to improve visualization of iodinated contrast and reduced doses. Combined with the low noise and super resolution1 image quality from AiCE Lung and PIQE 1024 Body for outstanding resolution, improving diagnostic confidence. Available on the redesigned Aquilion ONE / INSIGHT Edition.
Courtesy of Dr. M. Chen, NHLBI, National Institute of Health, USA
| Scan Mode | Ultra Helical |
| Collimation | 0.5 mm x 80 |
| kVp | 70 |
| mAs | SUREExposure 3D |
| Reconstruction | PIQE 1024 Body |
| CTDlvol | 3 mGy |
| DLP | 112.4 mGy·cm |
| Effective Dose† | 1.5 mSv |
†AAPM Report 96, k-factor 0.014
1PIQE is designed to fully utilize the maximum resolution of the detector.
2Global Illumination is a purchasable option, available in combination Vitrea® Advanced Visualization.
