Advanced imaging simplified.
Image Gallery
Aquilion ONE / INSIGHT Edition
Introducing the all-new Aquilion ONE / INSIGHT Edition. Built from the ground-up with our next-generation gantry and optics, the latest Deep Learning Reconstruction technology, and PIQE 10241.
1Option

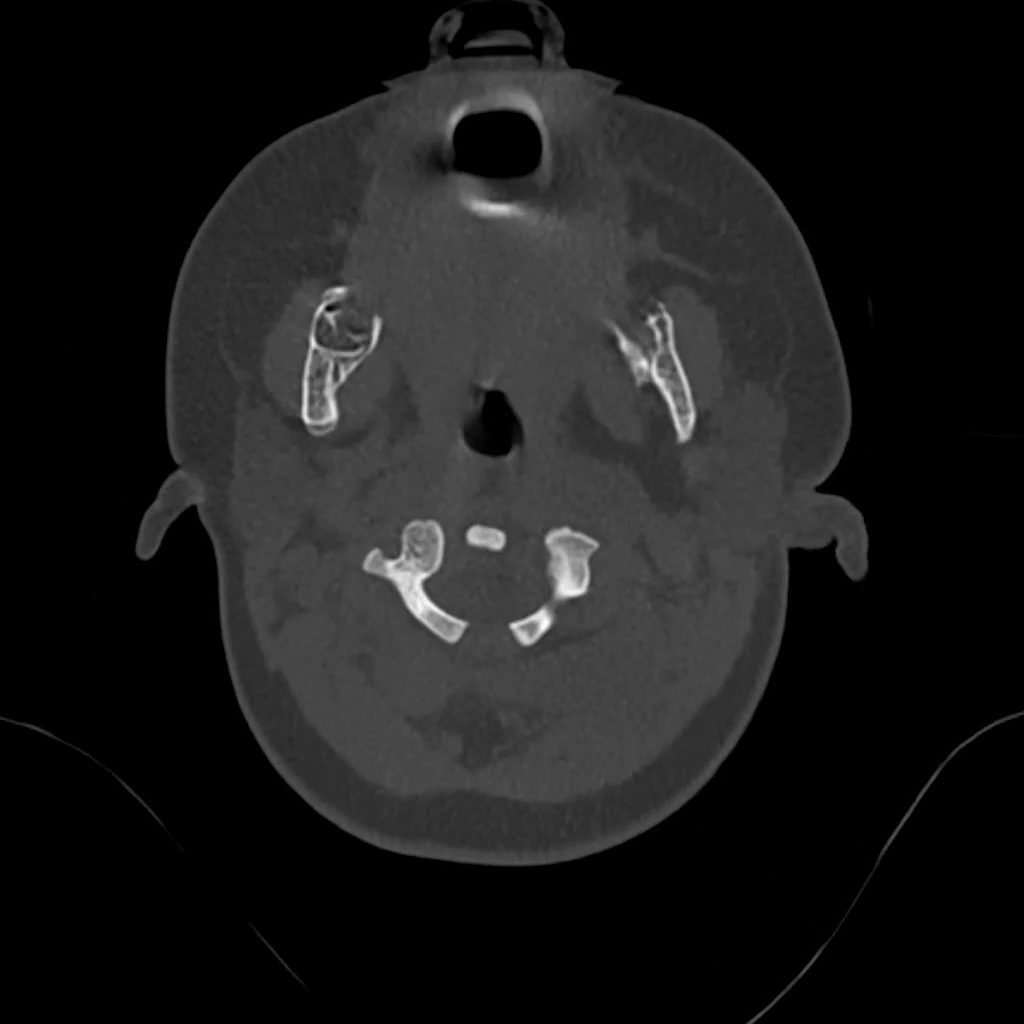

4 month old - Volume Brain
Aquilion ONE / INSIGHT Edition
Quickly and safely acquire pediatric head CT scans using ONE rotation whole-brain coverage in as little as 0.24 seconds with the Aquilion ONE / INSIGHT Edition.
| Scan Mode | Volume |
| kVp | 100 |
| mAs | SUREExposure |
| Reconstruction | AiCE |
| CTDlvol | 10.4 mGy |
| DLP | 145.2 mGy·cm |
| Effective Dose† | 1.6 mSv |
†AAPM Report 96, k-factor 0.014
1 Global Illumination is a purchasable option, available in combination Vitrea® Advanced Visualization.
Axial AiCE LCD
Bone Axial
Global Illumination
2 month old - 148 BPM Cardiac
Aquilion ONE / INSIGHT Edition
SURECardio works behind the scenes to adapt the exposure window to match the patient’s heart rate in real time, ensuring excellent temporal resolution with high heart rates.
View Scan Parameters| Heart Rate | Scan Mode | Exposure Window | kVp | mAs | Reconstruction | CTDIvol | DLP | Effective Dose† |
|---|---|---|---|---|---|---|---|---|
| 148 BPM | ONEBeat Volume | 0-100% | 100 | SUREExposure | PIQE 1024 | 1.9 mGy | 18.6 mGy·cm | 0.2 mSv |
†AAPM Report 96, k-factor 0.013
* Option
1 Global Illumination is a purchasable option, available in combination Vitrea® Advanced Visualization.

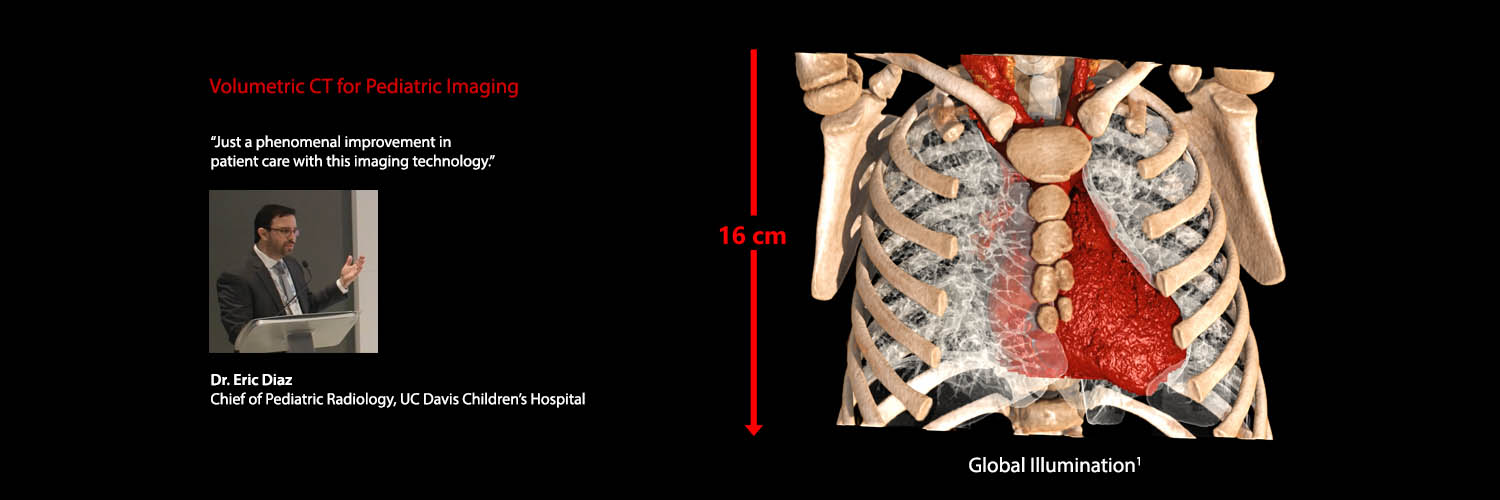

2 year old - Volume Chest
Aquilion ONE / INSIGHT Edition
Pediatric patients can be challenging to image and may have difficulty remaining still or holding their breath.
ONE Rotation is all it takes to overcome these challenges with 16 cm volume coverage in just 0.24 s.
View Scan Parameters
| Scan Mode | kVp | mAs | Reconstruction | CTDIvol | DLP | Effective Dose† |
|---|---|---|---|---|---|---|
| Volume | 100 | SUREExposure | AiCE | 10.4 mGy | 145.2 mGy·cm | 1.6 mSv |
†AAPM report 96, k-factor 0.011
1 Global Illumination is a purchasable option, available in combination Vitrea® Advanced Visualization.
Courtesy of Dr. Eric Diaz, UC Davis Children's Hospital, USA
The views and findings included here are those of the presenter. Clinical settings and other considerations may impact repeating these results.

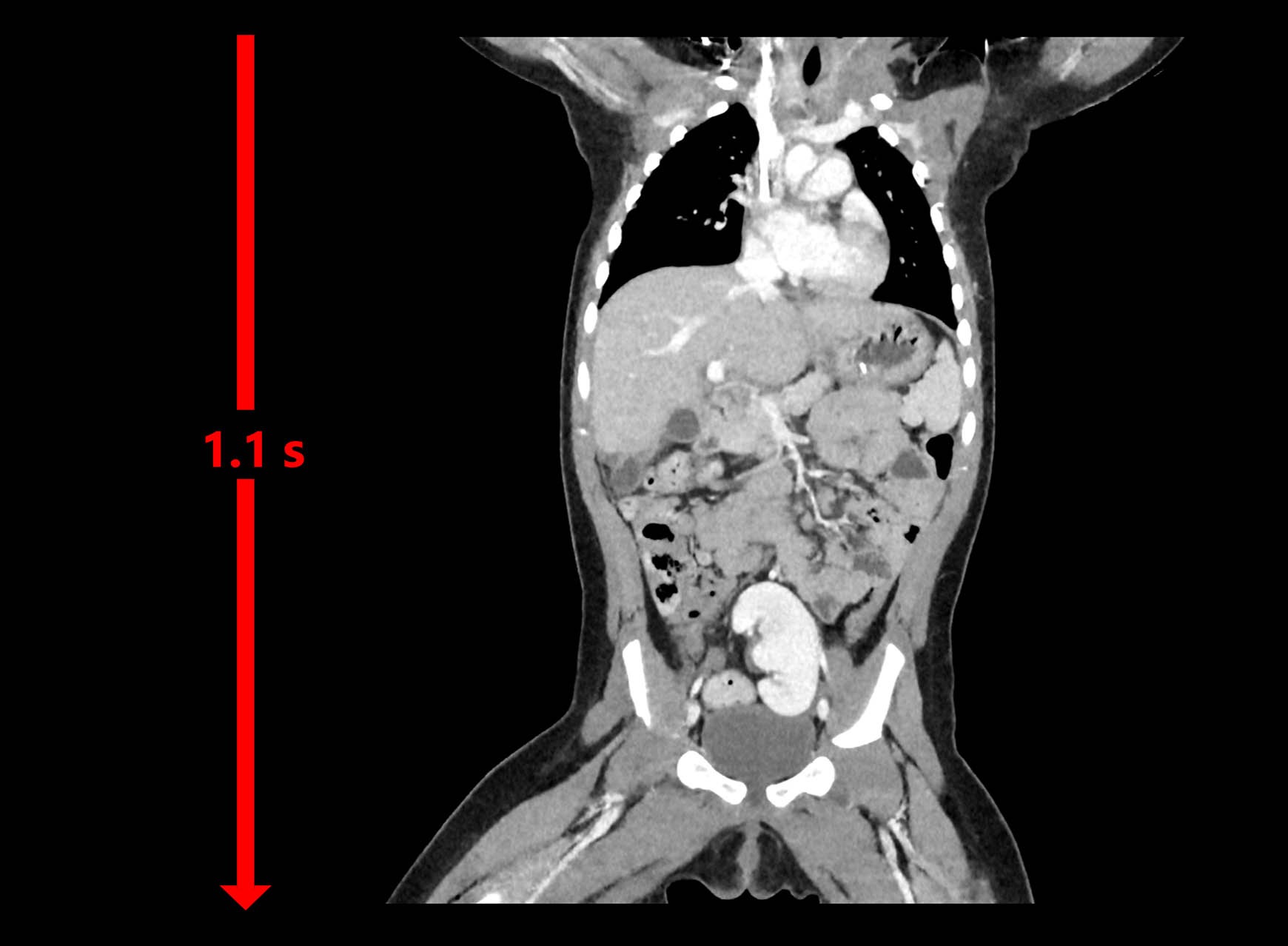

11 month old - Turbo Helical CAP
Aquilion ONE / INSIGHT Edition
This 11 m.o. patient was scanned for a CT Chest, Abdomen and Pelvis with IV contrast. The scan was acquired without sedation in just 1.1 seconds using Turbo Helical* scan mode.
Whole body CT scans can be achieved in seconds by combing faster rotation speed with faster table speed and the wider z-axis coverage of Turbo Helical* scan mode.
Courtesy of Eric Diaz, UC Davis Children's Hospital, USA
| Scan Mode | Volume |
| kVp | 120 |
| mAs | SUREExposure |
| Reconstruction | PIQE |
| CTDlvol | 0.9 mGy |
| DLP | 36.7 mGy·cm |
| Effective Dose† | 1.6 mSv |
†AAPM report 96, k-factor 0.044
* Option
Pediatric, 11 month old CT CAP with PIQE 1024* DLR
Aquilion ONE / INSIGHT Edition
Improve diagnostic confidence for pediatric CT studies with Super Resolution1 Deep Learning Reconstruction, PIQE 1024* Body, available on the all-new Aquilion ONE / INSIGHT Edition CT scanner.
PIQE 1024* Body delivers high-definition images with low dose.
Courtesy of Fujita Health University, Japan
View Scan Parameters| Scan Mode | Collimation | kVp | mAs | Reconstruction | CTDIvol |
|---|---|---|---|---|---|
| Helical | 0.5 mm x 100 | 100 | SUREExposure 3D | PIQE 1024 Body | 5.8 mGy |
* Option
1 PIQE is designed to fully utilize the maximum resolution of the detector.
7 year old – Fractured Elbow
Aquilion ONE / INSIGHT Edition
AiCE Deep Learning Reconstruction delivers low noise, high spatial resolution images that improve diagnostic confidence for pre-operative fracture evaluations.
Courtesy Orange Base Hospital, Australia
View Scan Parameters
| Reconstruction | CTDIvol | DLP |
|---|---|---|
| AiCE | 2 mGy | 24.9 mGy·cm |
* Option
1 Global Illumination is a purchasable option, available in combination Vitrea® Advanced Visualization.
