Aquilion Serve SP
Simply performs.
The all new Aquilion Serve SP CT scanner that delivers high-quality, low-dose imaging while increasing efficiency, consistency, and throughput.

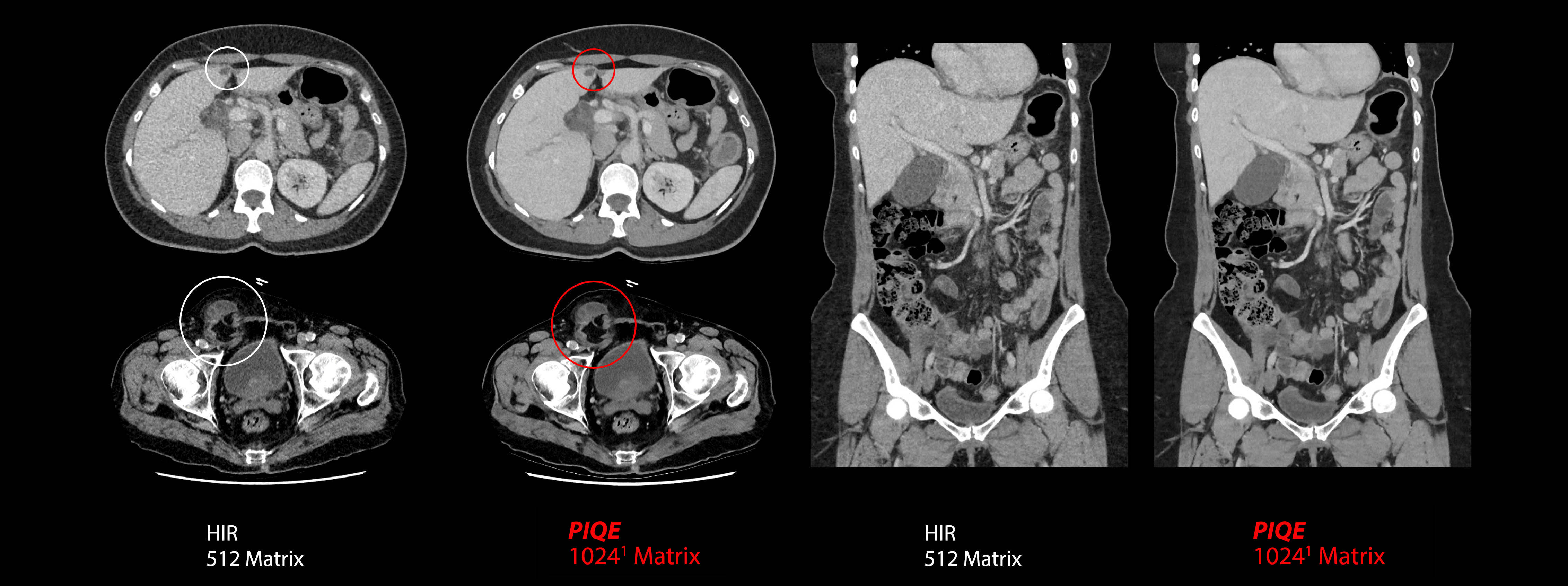

Precise IQ Engine (PIQE) 10241 DLR
Aquilion Serve SP
Overcome the challenges of visualizing small structures without additional radiation dose with PIQE 10241.
1 Option
2 PIQE is designed to fully utilize the maximum resolution of the detector.
Courtesy Sunshine Coast University Hospital, Australia

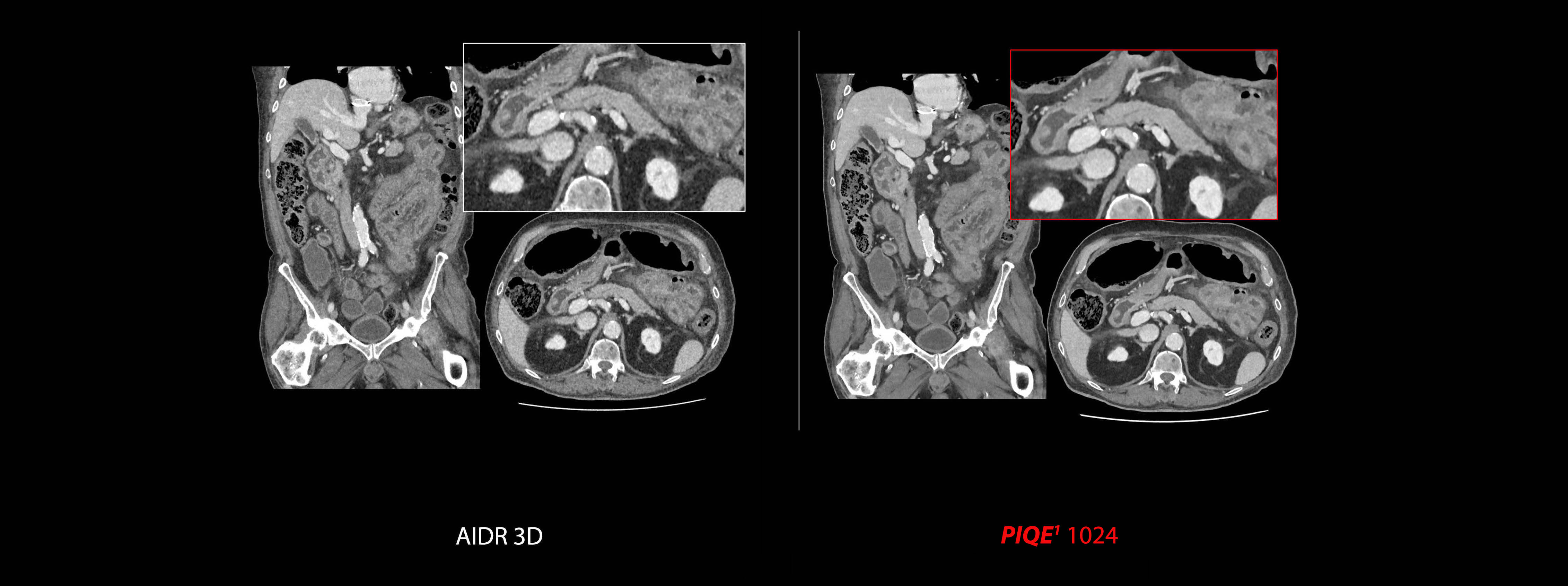

Precise IQ Engine (PIQE) 10241 DLR
Aquilion Serve SP
PIQE 10241 Body provides images with less noise and sharp borders to help clinicians provide a more confident diagnosis.
View Scan Parameters
| Scan Mode | kVp | mAs | Reconstruction | CTDIvol | DLP | Effective Dose† |
|---|---|---|---|---|---|---|
| Helical | 120 kV | SUREExposure | PIQE | 9.1 mGy | 473.5 mGy·cm | 7.1 mSv |
† AAPM Report 96, k-factor 0.015
1 Option
Courtesy of Redland Hospital, Australia.

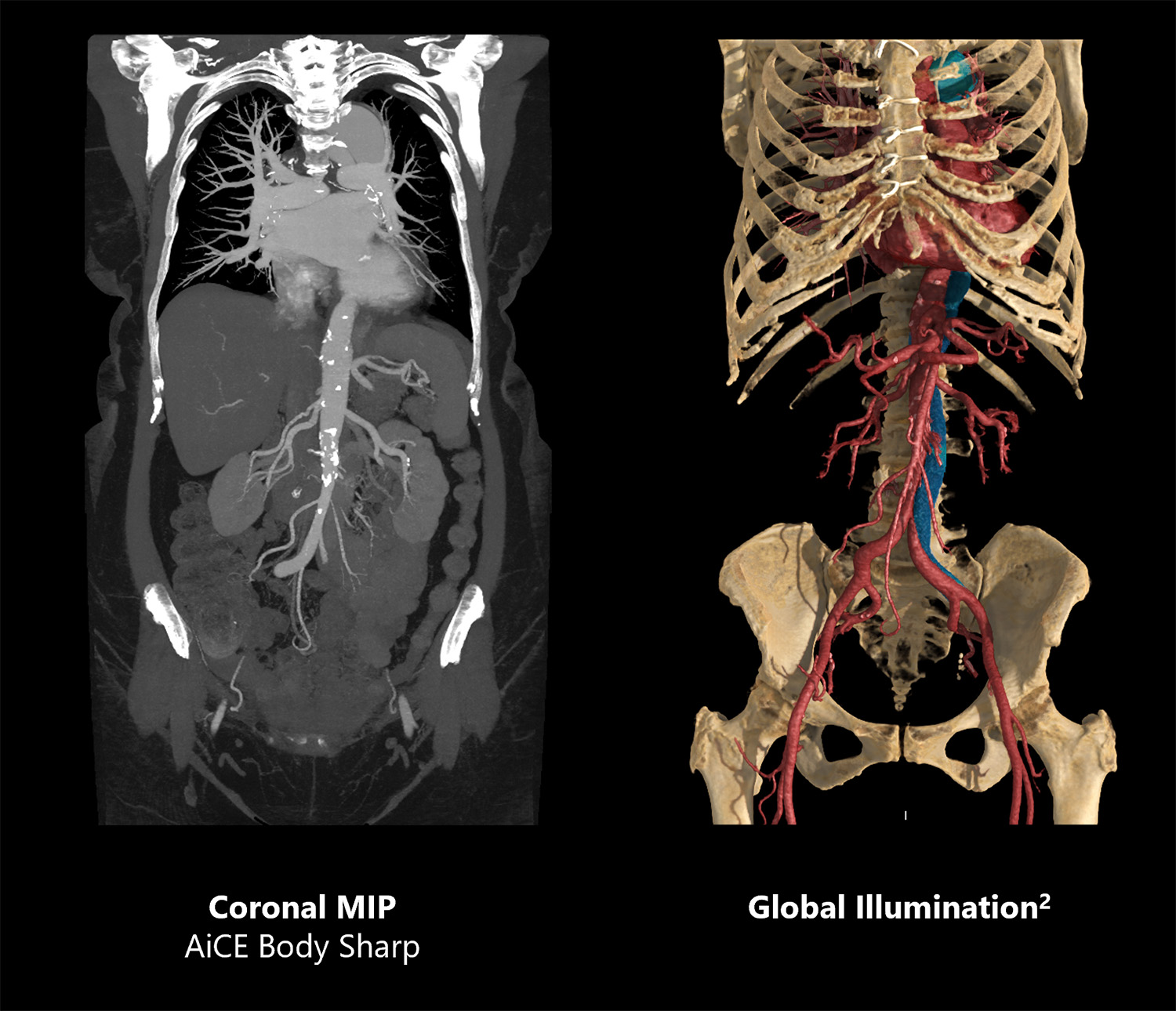

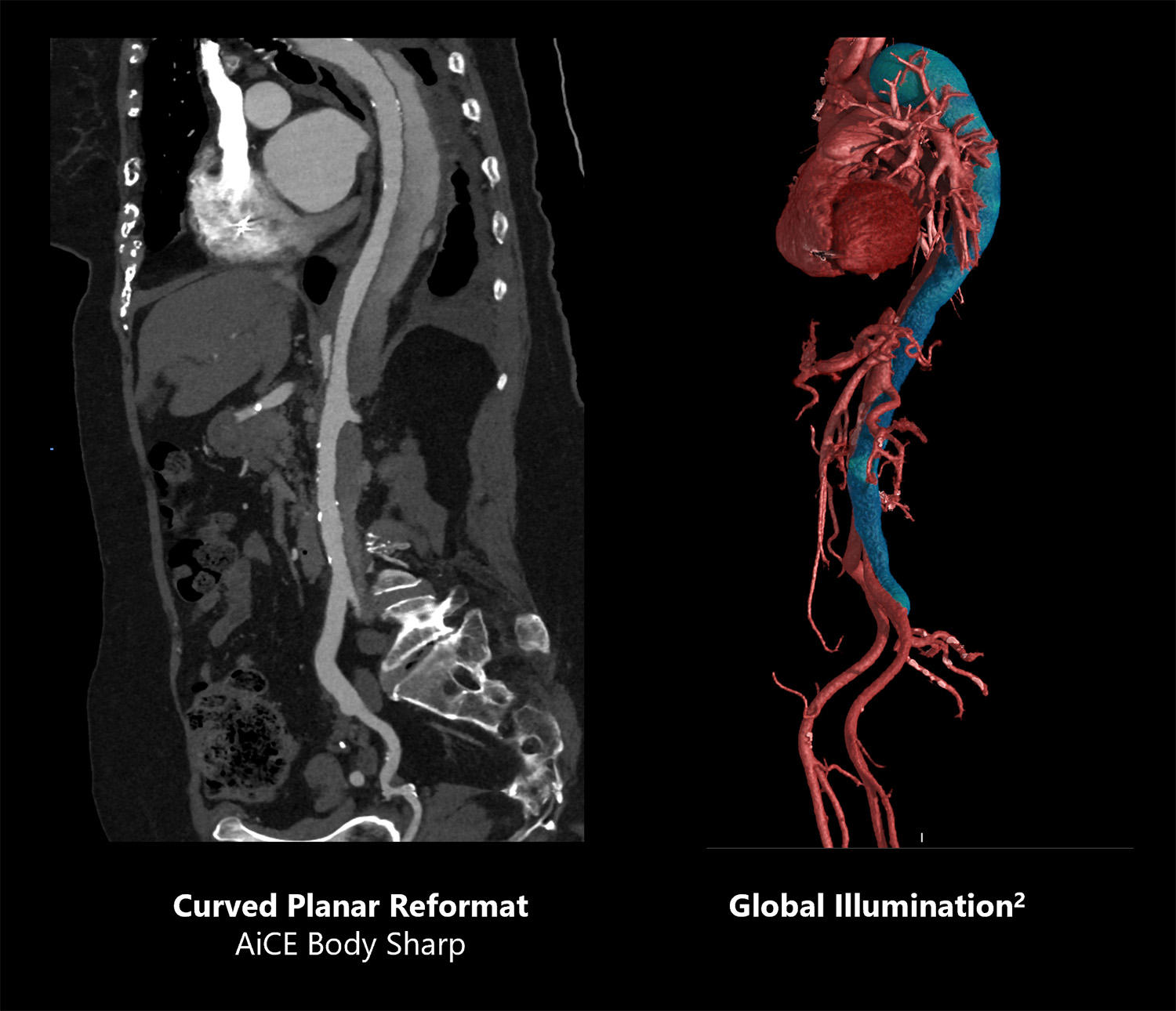

CTA Aorta Dissection, AiCE DLR
Aquilion Serve SP
Unlock the power of Helical CTA combined with Advanced intelligent Clear IQ Engine (AiCE) Deep Learning Reconstruction on the Aquilion Serve SP. The low-noise, high-resolution properties of AiCE DLR enable excellent visualization of anatomical detail.
| Scan Mode | kVp | mAs | Reconstruction | CTDIvol | DLP | Effective Dose† |
|---|---|---|---|---|---|---|
| Helical | 120 | SUREExposure 3D | AiCE DLR | Body Sharp | 6.4 mGy | 521.3 mGy·cm | 7.6 mSv |
† AAPM Report 96, k-factor 0.0145
2 Global Illumination is a purchasable option, available in combination of Vitrea® Advanced Visualization
Courtesy Sunshine Coast Radiology, Australia
CTA Runoff with SEMAR
Aquilion Serve SP
Unlock the power with AI-Assisted workflow and imaging that is fully integrated into the Aquilion Serve SP protocols and leveraging SEMAR to improve the artifact and visualization of the soft tissues adjacent to the metal implant.
View Scan Parameters| Scan Mode | kVp | mAs | Reconstruction | CTDIvol | DLP | Effective Dose† |
|---|---|---|---|---|---|---|
| Helical | 120 | SUREExposure 3D | AiCE DLR | Body Sharp | 6.4 mGy | 521.3 mGy·cm | 7.6 mSv |
† AAPM Report 96, k-factor 0.014
* Option
1 Global Illumination is a purchasable option, available in combination Vitrea® Advanced Visualization
SURESubtraction CTPA with SEMAR for Pulmonary Embolism Evaluation
Aquilion Serve SP
CT Pulmonary Angiogram using SEMAR metal artifact reduction and SURESubtraction* Iodine mapping color overlays that provide assessment of relative lung perfusion.
Despite left humeral fixation, diagnostic clarity is maintained with excellent visualization of the pulmonary vasculature and lung parenchyma.
View Scan Parameters| Scan Mode | kVp | mAs | Reconstruction | CTDIvol | DLP | Effective Dose† |
|---|---|---|---|---|---|---|
| Non-Contrast Helical | 100 | SUREExposure | AiCE | 5.4 mGy | 182.4 mGy·cm | 2.5 mSv |
| Contrast Helical | 100 | SUREExposure | AiCE | 6.8 mGy | 229.7 mGy·cm | 3.2 mSv |
†AAPM Report 96, k-factor 0.014
* Option

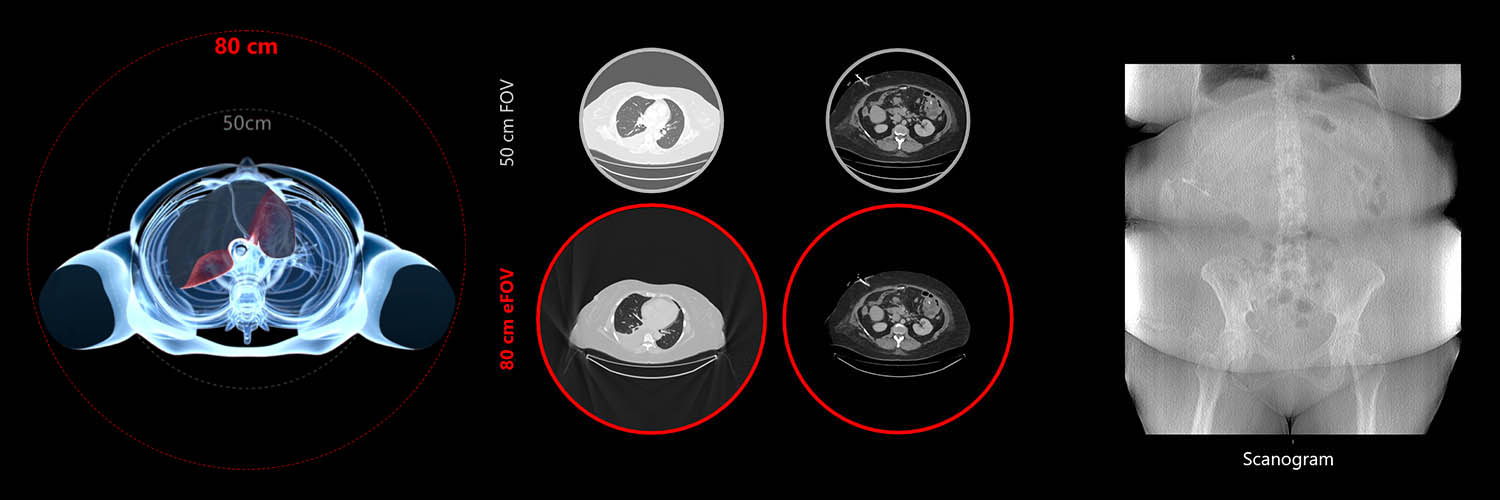

Large Patient eFOV
Aquilion Serve SP
Imaging large patients presents unique challenges, pathology may be missed with a limited field-of-view. Reduce the risk of missing pathology with 80 cm extended field-of-view.
View Scan Parameters
| Scan Mode | kVp | mAs | Reconstruction | CTDIvol | DLP | Effective Dose† |
|---|---|---|---|---|---|---|
| Helical | 120 | SUREExposure | AiCE | 4.9 mGy | 592.6 mGy·cm | 13.7 mSv |
† AAPM Report 96, k-factor 0.014
* Option
1 Global Illumination is a purchasable option, available in combination Vitrea® Advanced Visualization
