Body Clinical Gallery
Innovate. Illuminate. Initiate.
The Aquilion ONE / PRISM Edition's 16 cm wide area detector significantly improves your ability to obtain high-quality images for routine and advanced studies. With just one rotation, you can acquire an entire heart or a neonatal chest, in a fraction of a second—all with less dose and great z-axis temporal uniformity.
Precise IQ Engine (PIQE) 10241 DLR
Aquilion ONE / PRISM Edition

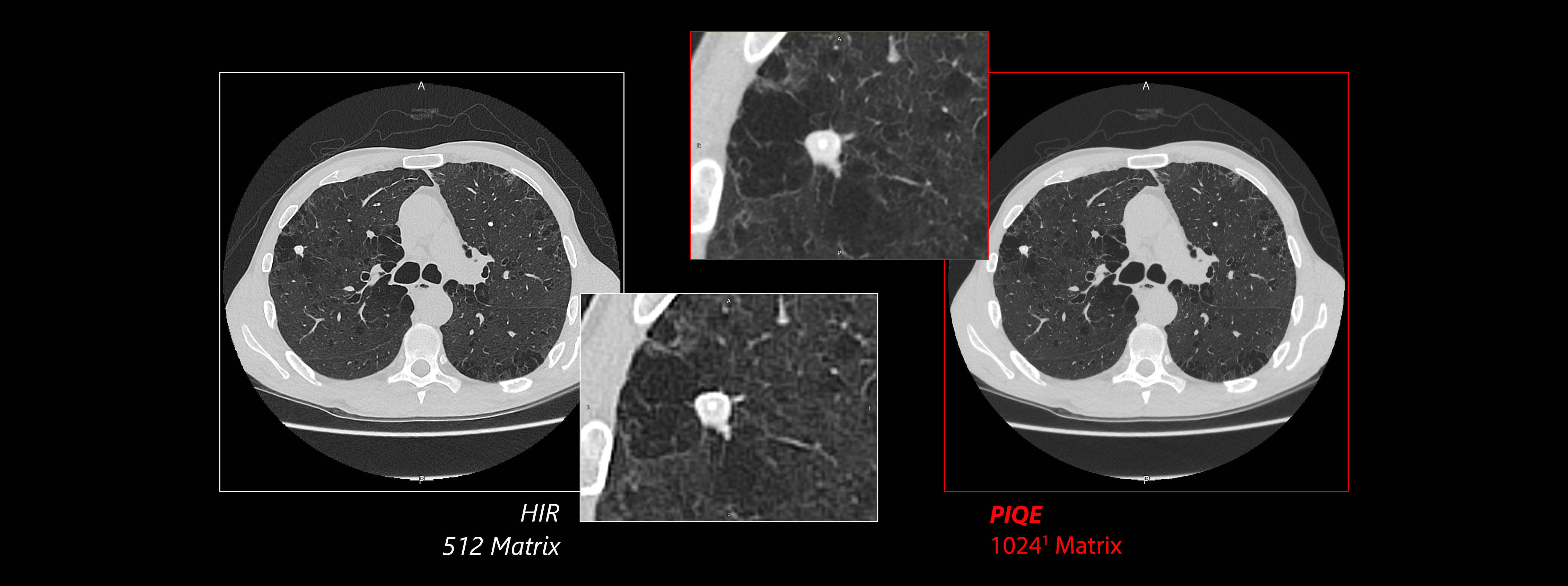

PIQE1 Lung2 Super Resolution3 DLR images show sharp anatomical detail and provide a high 1024 matrix allowing up to four times magnification without loss of resolution.4
View Scan Parameters
| Scan Mode | kVp | mAs | Reconstruction | CTDlvol | DLP | Effective Dose† |
|---|---|---|---|---|---|---|
| Helical | 120 | SUREExposure | PIQE | 2.9 mGy | 141.9 mGy·cm | 2.0 mSv |
†AAPM Report 96, k-factor 0.014
1 Option
2 PIQE Lung based upon NEQ measurements, e.g. increase in NEQ by a factor of X (range y – z) for frequencies above 0.5 lp/mm for a 320 mm FOV at an SSDE of 9mGy.
3 PIQE is designed to fully utilize the maximum resolution of the detector.
4 Compared to conventional 512 matrix.
Precise IQ Engine (PIQE) 10241 DLR
Aquilion ONE / PRISM Edition

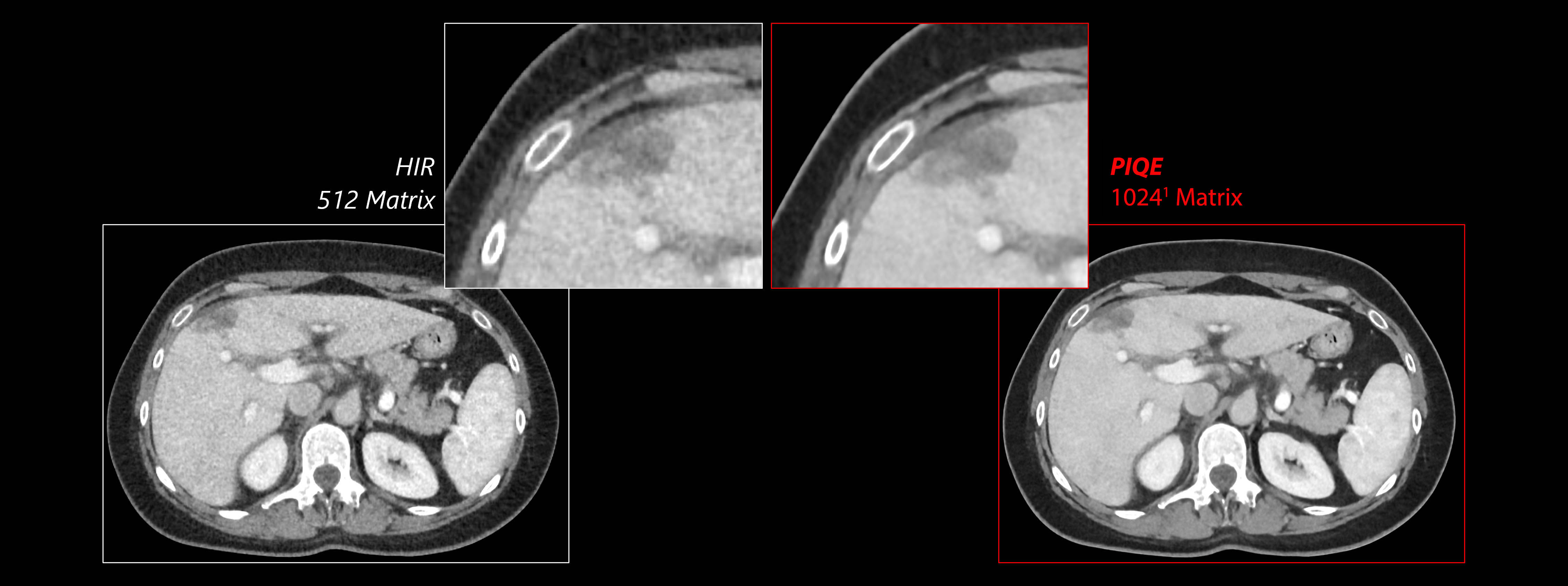

PIQE1 Body Super Resolution2 DLR can improve lesion conspicuity3, delivering images with less noise, and sharp borders for a more confident diagnosis.
View Scan Parameters
| Scan Mode | kVp | mAs | Reconstruction | CTDlvol | DLP | Effective Dose† |
|---|---|---|---|---|---|---|
| Helical | 120 | SUREExposure | PIQE | 4.3 mGy | 219.5 mGy·cm | 3.3 mSv |
†AAPM Report 96, k-factor 0.015
1 Option
2 PIQE is designed to fully utilize the maximum resolution of the detector.
3 Compared to hybrid iterative reconstruction (HIR).
Thoracic Aorta Stent Follow up, AiCE
Aquilion ONE / PRISM Edition
Ultra Helical CTA combined with AiCE deep learning reconstruction, demonstrating good deployment of the thoracic aortic stent. The low-noise high-resolution properties of AiCE DLR enable excellent visualization of anatomical detail.
View Scan Parameters| Scan Mode | Ultra-Helical |
| Collimation | 0.5 mm x 80 |
| kVp | 100 |
| mAs | SUREExposure |
| Rotation Time | 0.5 s |
| Scan Range | 624.0 mm |
| Reconstruction | |
| CTDlvol | 1.3 mGy |
| DLP | 194.4 mGy·cm |
| Effective Dose* | 2.8 mSv |
*AAPM Report 96, k-factor 0.0145
Chest Abdomen Pelvis, Large Patient, AiCE
Aquilion ONE / PRISM Edition
View Scan Parameters| Scan Mode | Ultra-Helical |
| Collimation | 0.5 mm x 80 |
| kVp | 135 |
| mAs | SUREExposure |
| Rotation Time | 0.5 s |
| Scan Range | 628.0 mm |
| Reconstruction | |
| CTDlvol | 14.0 mGy |
| DLP | 942.4 mGy·cm |
| Effective Dose* | 13.6 mSv |
*AAPM Report 96, k-factor 0.0145
Kidney Stone Analysis
Aquilion ONE / PRISM Edition
Deep Learning volumetric Spectral CT enables a fast, quantitative assessment to evaluate the composition of renal stones.
The composition of kidney stones is represented both graphically and as color overlay on 2D images using Vitrea Advanced Visualization.
View Scan Parameters| Scan Mode | Spectral Volume |
| Collimation | 0.5 mm x 280 |
| kVp | 80/135 |
| mAs | 245 |
| Dose Reduction | |
| CTDlvol | 10.3 mGy |
| DLP | 130.3 mGy·cm |
| Effective Dose* | 1.95 mSv |
*AAPM Report 96, k-factor 0.015
Tracheal Stent Ultra Low Dose, AiCE
Aquilion ONE / PRISM Edition
Sub-mSv Ultra Helical CT of the chest revealing tracheal stent in situ with bilateral pleural thickening and pleural effusion with draining tube. Despite the extremely low effective dose, AiCE was able to produce excellent HRCT images in all planes.
View Scan Parameters| Scan Mode | Ultra-Helical |
| Collimation | 0.5 mm x 80 |
| kVp | 100 |
| mAs | SUREExposure |
| Rotation Time | 0.275 s |
| Scan Range | 340.0 mm |
| Reconstruction | |
| CTDlvol | 1.4 mGy |
| DLP | 53.0 mGy·cm |
| Effective Dose* | 0.7 mSv |
*AAPM Report 96, k-factor 0.014
