Precise IQ Engine (PIQE)
PiQE is Canon Medical’s high resolution Deep Learning Reconstruction for MRI. PiQE increases matrix size, removes noise, and delivers sharp anatomical images to take MR imaging to the next level.
MSK
Vantage Fortian 1.5T

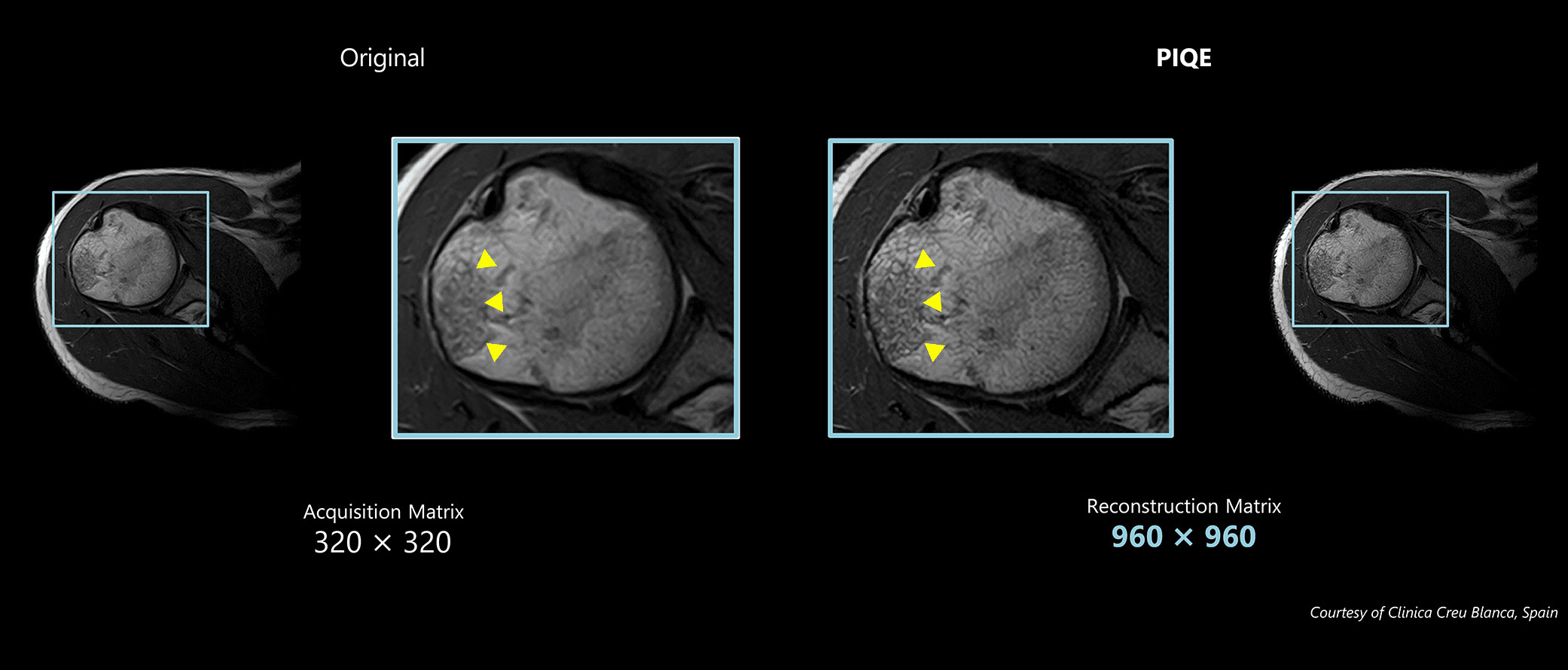

Axial PDw for shoulder
Structural detail can be more finely captured at three times the resolution with PIQE.
MSK
Vantage Fortian 1.5T

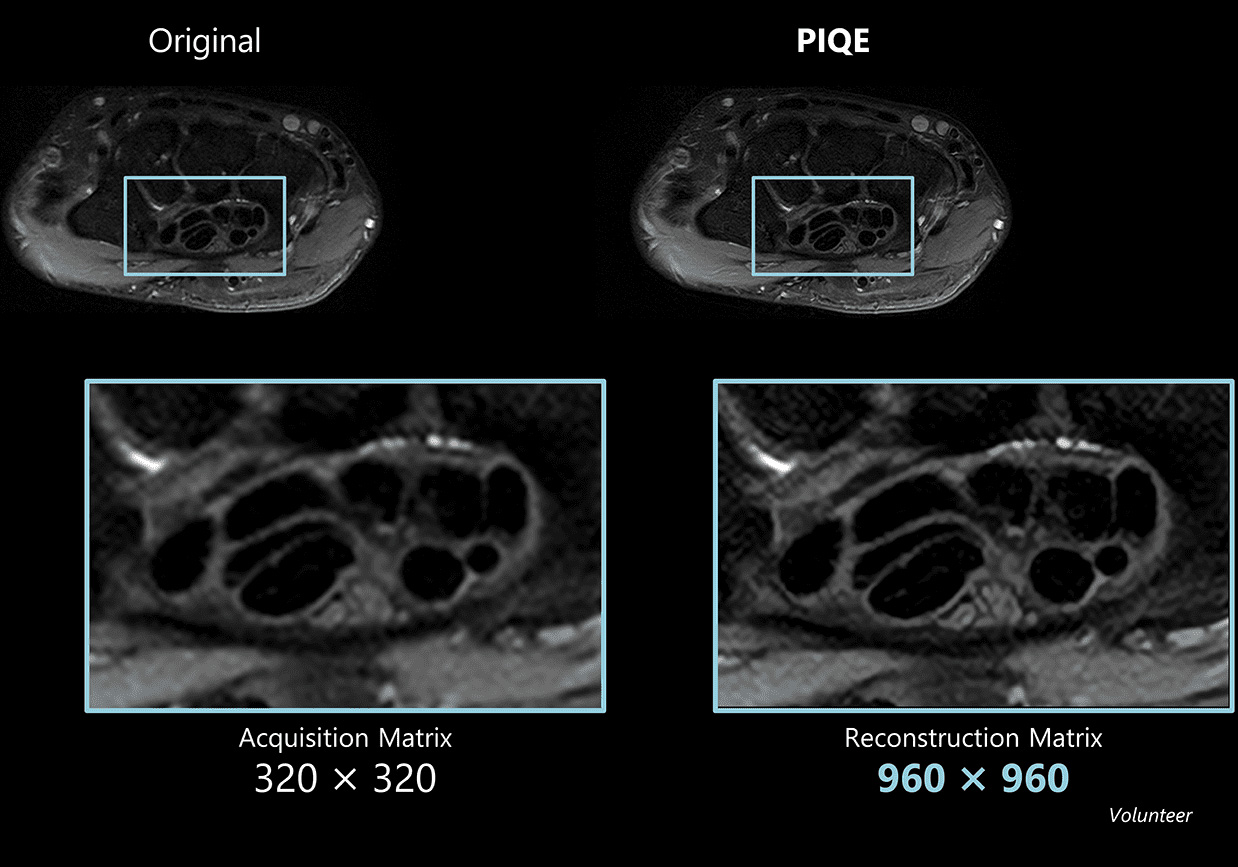

Axial FS PDw for median nerve
Using a 16ch Flex SPEEDER Medium coil and an acquisition matrix 320 × 320 setting, imaging can be performed in approximately 3 minutes. Structures around the median nerve can be clearly identified.
Acquisition time: 3:14
MSK
Vantage Fortian 1.5T

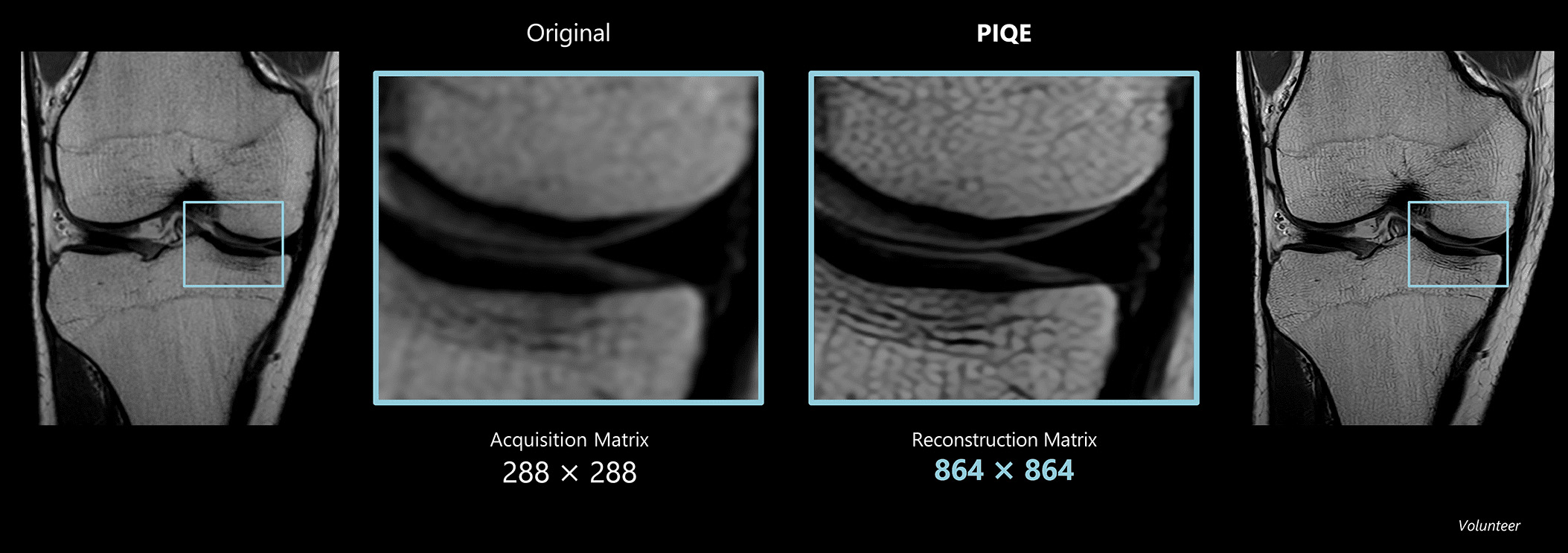

Coronal PDw for Knee
The resolution enhancements of PIQE allow users to clearly delineate the fine structures around cartilage and the meniscus.
MSK
Vantage Fortian 1.5T

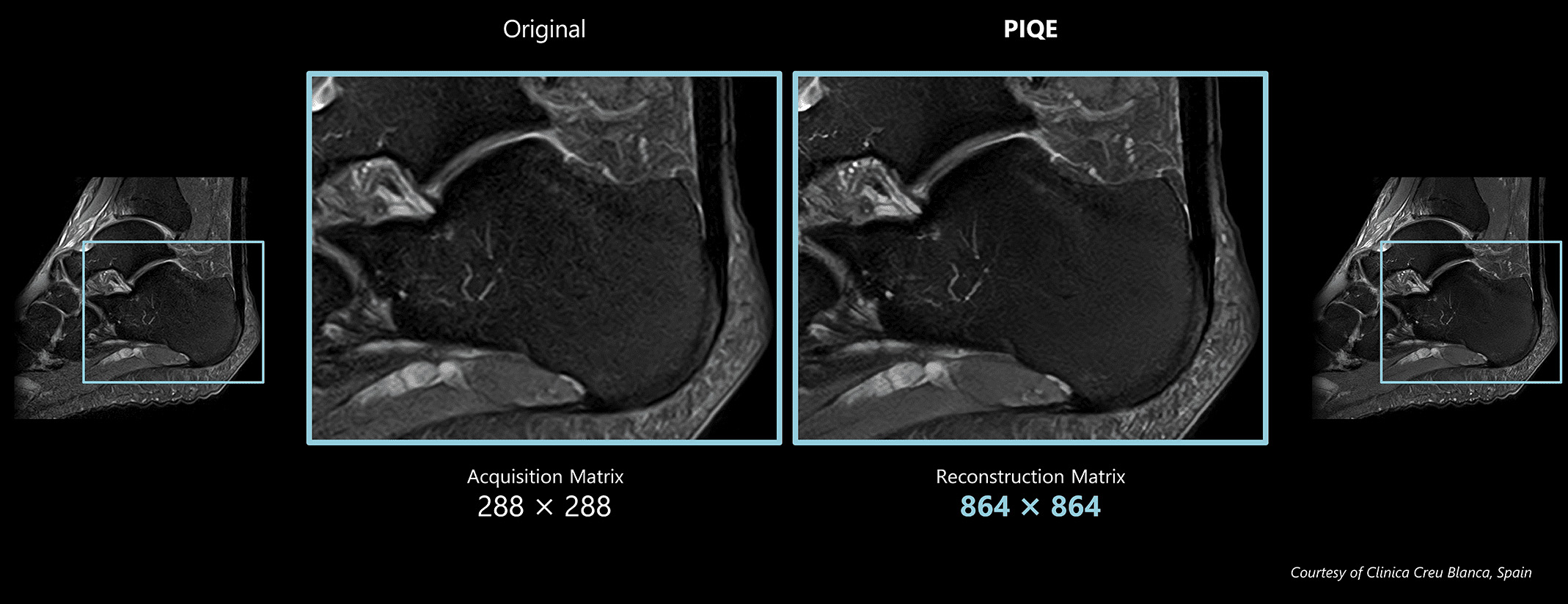

Sagittal FS PDw for ankle
In this heel FS PDw image, the structure is captured in more detail at three times the resolution with PIQE.
MSK
Vantage Fortian 1.5T

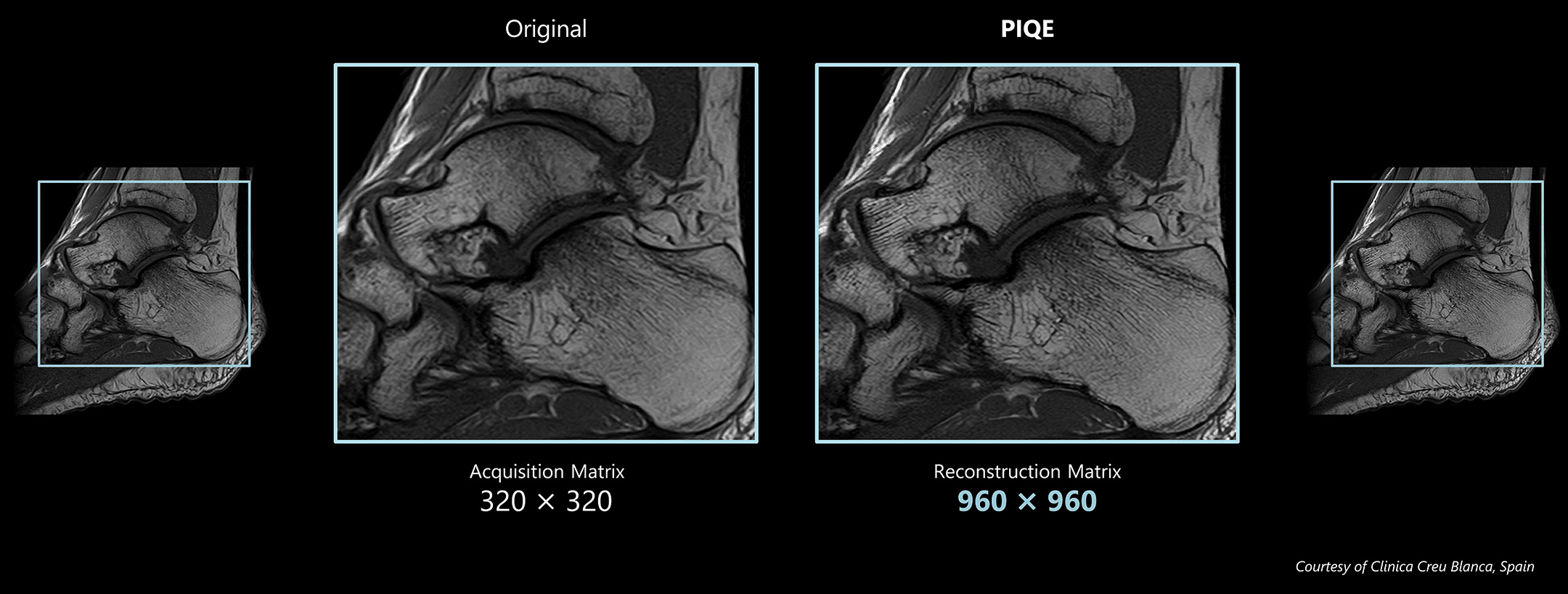

Sagittal T1w for ankle
In this heel T1W image, the structure is captured in more detail at three times the resolution with PIQE.

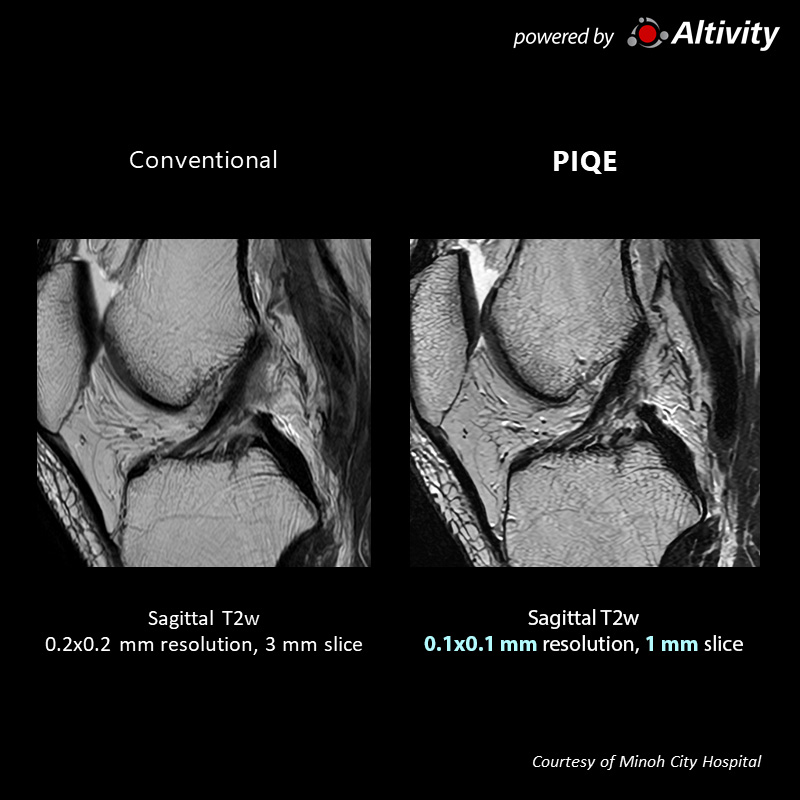

Suspected Left Collateral Ligament Injury
Vantage Galan 3T
PIQE
PIQE delivers higher resolution and thinner slice thickness of images while maintaining SNR through k-space upsampling.
Original
Matrix 224x224
Axial PDw FS 1.02x1.02 mm resolution, 4 mm
PIQE 3x3
Matrix 672x672
Original
Matrix 320x320
Axial PDw FS 0.62x0.62 mm resolution, 3 mm
PIQE 3x3
Matrix 960x960
Original
Matrix 256x256
Axial PDw WFS 0.5x0.5 mm resolution, 2.5 mm
PIQE 3x3
Matrix 768x768
Actual scan time and scan time reductions shown throughout this gallery may vary by case.
