Advanced imaging simplified.
Advanced imaging simplified.
PCCT Inspired* Imaging Done Right with the Aquilion ONE / INSIGHT Edition.
* Aquilion ONE / INSIGHT Edition with PIQE 1024 (SNR equivalence based on NEQ measurements (320 FOV, 13 mGY SSDE, and AIDR3D on PCCT) across body, lung and cardiac for high-contrast high-resolution objects that are less than 0.5mm).
1 Option/Depends on system configuration.
2 PIQE is designed to fully utilize the maximum resolution of the detector on the Aquilion ONE CT's and Aquilion Serve SP.
Insights Faster with Next Generation Gantry
Intuitive, integrated, and advanced technologies on the Aquilion ONE / INSIGHT Edition.
- Cardiac CT studies in ONE-Beat with high-heart rate thresholds
- Ultra-fast 0.24 sec rotation wide-area 16 cm CT with whole-organ coverage1
- Head-to-Toe scans in seconds with 0.24 sec rotation ultra-fast acquisitions
- Ultra-low dose lung cancer screening and MSK imaging with the SilverBeam filter
- Super Resolution2 images with no dose penalty enabled by Precise IQ-Engine PIQE 10241
1 Depending on system and configuration.
2 PIQE is designed to fully utilize the maximum resolution of the detector.
Insightful Solutions to Complex Problems
Imaging Chain Innovations.
Ultra-fast 0.24 sec*,1 rotation and exceptional acquisitions on a wide-area 16 cm1 coverage with the synergy of the PUREINSIGHT1 detector and the CoolNovus X-ray tube1 on the Aquilion ONE / INSIGHT Edition.
Fast Rotating Gantry*
- High heart rate cardiac CT capable
- Ultra-fast trauma and pediatric acquisitions
- Rigid frame built to withstand 50g-force
CoolNovus X-ray Tube
- Low 70 kV2
- Up to 1400 mA
- 100 kW Generator*
PUREINSIGHT Detector
- 40% Less Electronic Noise3
- 16 cm Coverage
- True Isotropic 320 x 0.5 mm
* Option
1 Available on the Aquilion ONE / INSIGHT Edition.
2 Low 70 kV is dependent on patient size and type of study.
3 Compared to conventional CT scanners.
Wide, Open and Low System Design
Enhancing the experience and improving access, comfort and safety.
Let your CT scanner do the heavy lifting, reducing manual movement for staff while also reducing the discomfort for patients.
- Patient-centric scanner design, with flared, wide 80 cm gantry bore and high table weight capacity up to 694 lbs.*,1
- Quick and accurate isocenter positioning with SUREPosition and Lateral Slide*,2, mechanical movement of the table 8.5 cm left or right, at the touch of a button.
- Easy and accurate positioning
- Save time
- Reduce heavy lifting
- Reduce patient discomfort
- Optimal IQ and Dose
* Option
1 Depending on system configuration.
2 Optimal dose and image quality occur at isocenter.
INSTINX*, AI-Assisted Workflow Automation
Optimized and consistent imaging that drives workflow and efficiency.
* Depending on system configuration.
1 Based on a study performed at Hakujyuji Hospital, Japan with 40 cases, 10 technologists comparing manual scan planning on Aquilion ONE with automatic scan planning on Serve for body examinations.
2 Based on an ALD evaluation of 240 3D Landmark scans (40 Head, 200 Body) 3D landmark scan data. Cases in which the relevant anatomic landmark(s) were not present (9) were excluded. 97% accuracy is based on results within +/- 1 cm of target start, end, and FOV position, confirmed by two experienced CT Technologists.
Driving Efficiency with Workflow Automation
INSTINX*, AI-Assisted Workflow Automation.
- Intuitive operation and intelligent automated workflows
- Simple and accurate scan planning
- Consistency between operators regardless of their experience
* Depending on system configuration.
1 Based on a study performed at Hakujyuji Hospital, Japan with 40 cases, 10 technologists comparing manual scan planning on Aquilion ONE with automatic scan planning on Serve for body examinations.
2 Based on an ALD evaluation of 240 3D Landmark scans (40 Head, 200 Body) 3D landmark scan data. Cases in which the relevant anatomic landmark(s) were not present (9) were excluded. 97% accuracy is based on results within +/- 1 cm of target start, end, and FOV position, confirmed by two experienced CT Technologists.
3 SURESubtraction Iodine Mapping and Bone Removal.
SilverBeam* Filter
Ultra-low dose scanning.
The beam shaping energy filter leverages the photon-attenuating properties of silver to selectively remove low-energy photons from a polychromatic X-ray beam, leaving an optimized energy spectrum.
* Not all options/features may be available across all systems/configurations.
1 Depending on system configuration.
2 Courtesy of Dr. M Chen, NHLBI, National Institutes of Health, USA.
3 Courtesy of Dr. Bull, Bournemouth, UK.
Cardiac Excellence
Every heart, Covered.
Cardiovascular disease is on the rise. In fact, one person dies every 34 seconds in the United States from cardiovascular disease.* With CT positioned as a first-line diagnostic tool to help clinicians address the evolving needs of cardiac imaging, your ability to deliver high quality, consistent CT studies is critical to outcomes. Your patients deserve the best technology available, and so do you. Canon Medical—the creator of one-beat cardiac CT—delivers.

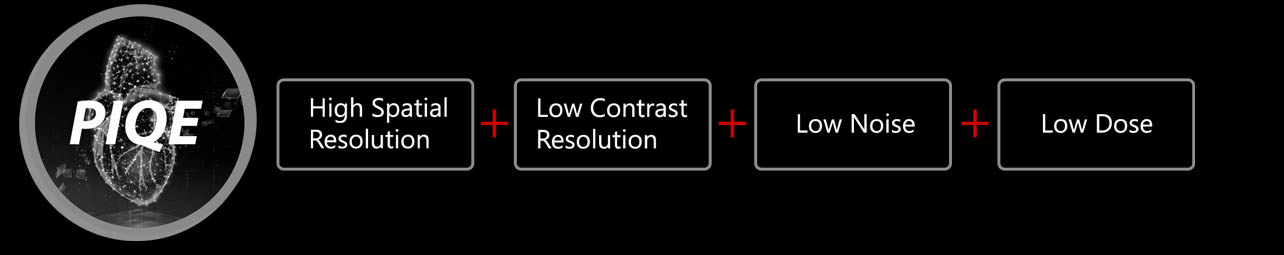

Precise IQ Engine (PIQE) 1024* DLR
Super Resolution1
PIQE* 1024 DLR maximizes the inherent resolution of CT to deliver Super Resolution1 images without compromising image noise or dose, with improved spatial resolution for Body CT and Cardiac CTA exams.
PIQE 1024* Cardiac delivers sharper images for better visualization of stents, calcification and plaque.
PIQE 1024* Body provides images with less noise and sharp borders between lesions seen in the liver or kidneys.
PIQE 1024* Lung2 provides sharp anatomical detail for improved visualization of the lung parenchyma, without dose penalties.
* Option
1 PIQE is designed to fully utilize the maximum resolution of the detector.
2 PIQE Lung based upon NEQ measurements. Data available upon request.
These results are based upon the customer’s specific experience. Clinical results are the experience of the author. Results may vary due to clinical setting, patient presentation and other factors.
Clearer with Motion Correction
CLEAR Motion1, 2
A raw data-based integrated Deep Learning Reconstruction (DLR) algorithm with a seamless workflow for cardiac and lung imaging.
- Compatible with Super Resolution3 PIQE1 1024 DLR, and AiCE DLR for integrated motion correction, noise and dose reduction.
CLEAR Motion OFF1, 2
CLEAR Motion ON1, 2
* Effective temporal resolution of 15.8 ms - Based on mathematical simulation. Data available upon request. Results may vary in clinical applications.
1 Option.
2 CLEAR Motion is available for Cardiac and Lung on the Aquilion ONE.
3 PIQE is designed to fully utilize the maximum resolution of the detector.
Courtesy of Dr. Chen, National Institute of Health, USA.
Sharp, Clear, and Distinct Images at Low Doses
Advanced intelligent Clear-IQ Engine (AiCE).
AiCE Deep Learning Reconstruction (DLR) is trained to reduce noise and improve low-contrast detectability for body imaging at the same dose compared with hybrid iterative reconstruction.
Filtered Back Projection
AiCE DLR
Stroke Assessment in Under 5 Minutes*
When time is brain, every second counts
Wide-area CT comprehensive stroke evaluation with whole brain1 perfusion with 4D digital subtraction* angiography of the intracranial circulation in just one minute.
Evaluate flow and perfusion defects with 4D brain perfusion2 Vitrea software to help provide information to clinicians to evaluate treatment decisions in under five minutes*.
Technology Highlights:
- 320 detector row system, 0.5 mm x 3201
- Up to 640 slices with coneXact* double slice reconstruction 16 cm z-axis ultra-high-resolution coverage1
- Advanced Clear-IQ Engine (AiCE) Deep Learning Reconstruction
- Vitrea Advanced Visualization*2
* Option
1 Available on the Aquilion ONE / INSIGHT Edition and Aquilion ONE / Prism Edition.
2 Available with Vitrea Advanced Visualization.
Images Courtesy of Radboud UMC, Nijmegen, The Netherlands.
Deep Learning Spectral*
Full Spectral Transformation
- Multi-energy raw data sets transformed into both a full high and low energy separated set.
- Energy separation for Spectral analysis with high resolution and low noise.
- Easy to use, and fully integrated with automatic transfers of monochromatic volumes, iodine maps1 and VNC images to PACS.
- Spectral material differentiation and characterization evaluations launched directly from PACS with integration of Vitrea Advanced Visualization*2 software.
* Option
1 Gray scale iodine maps directly from CT console, color iodine maps only with Advanced Vitrea application.
2 In combination with Vitrea® Advanced Visualization.
