Next-generation of Interventional Systems.
Leadership in dose management technology.
Canon Medical Systems' dose management innovations focus on four fundamental areas of system performance—time, distance, shielding, and technology—while maintaining image quality. DoseRite technologies provide a comprehensive dose management suite of tools designed to help you minimize patient X-ray exposure while maintaining optimum image quality, enabling you to prioritize safe operating conditions for patients and clinical staff.

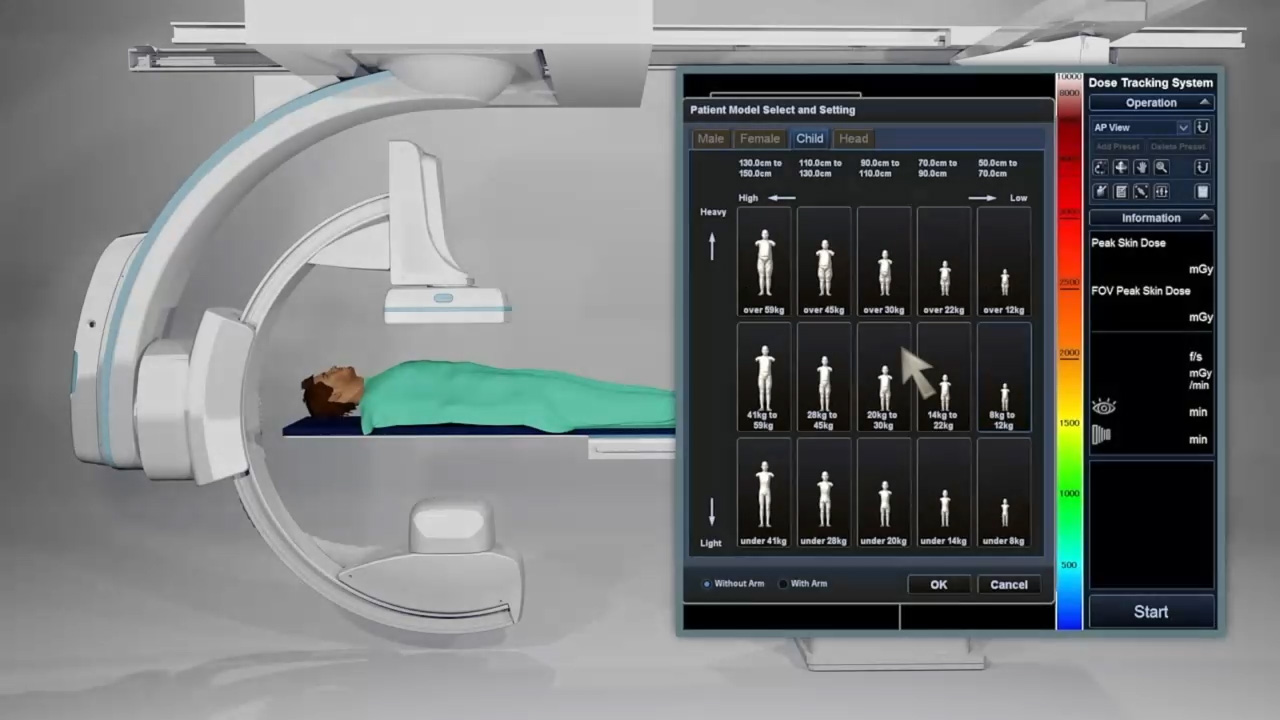

Dose Tracking System (DTS)1
See radiation exposure like never before.
Estimates dose delivered to the skin in real time and displays it on a color-coded map during procedures so physicians can continuously monitor exposure and make adjustments.
Canon Medical Systems' award winning Dose Tracking System (DTS)2 introduces exclusive technology in estimating skin dose distribution:
- Color coded and easy-to read 3D spatial visualization of skin dose estimates
- Real-time feedback that enables procedure adjustments and the capability to limit exposure in any area for prolonged periods
- Use on both adult and pediatric patients for cardiac, abdominal and neuro procedures
1 Option only available in Alphenix Core+, Alphenix Biplane, Alphenix Sky, Alphenix Sky+ and Alphenix 4D CT.
2 Awarded Best New Radiology Software 2014 by AuntMinnie.com

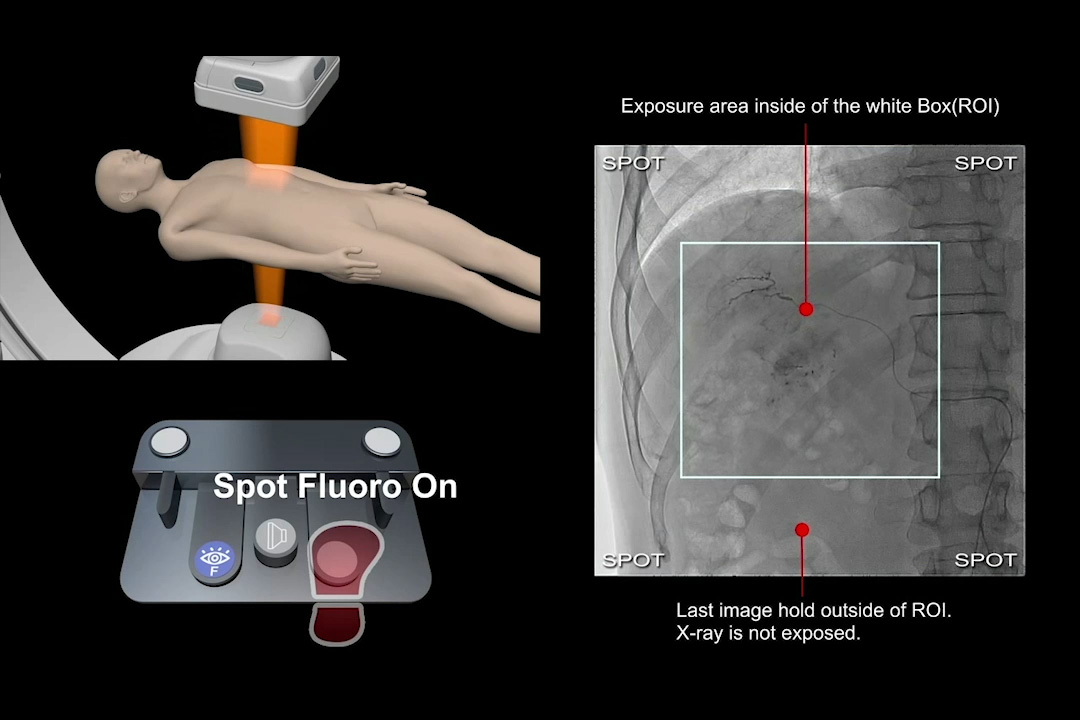

Spot Fluoroscopy1
Advanced collimation, see outside the box.
See a more complete picture, see live uoroscopy inside the target ROI while viewing the surrounding area over Last Image Hold (LIH).
- Last Image Hold overlay with live fluoroscopy
- Freely collimate with asymmetric blade movements
- Next generation Automatic Brightness Control with Scatter Correction
1 Option.

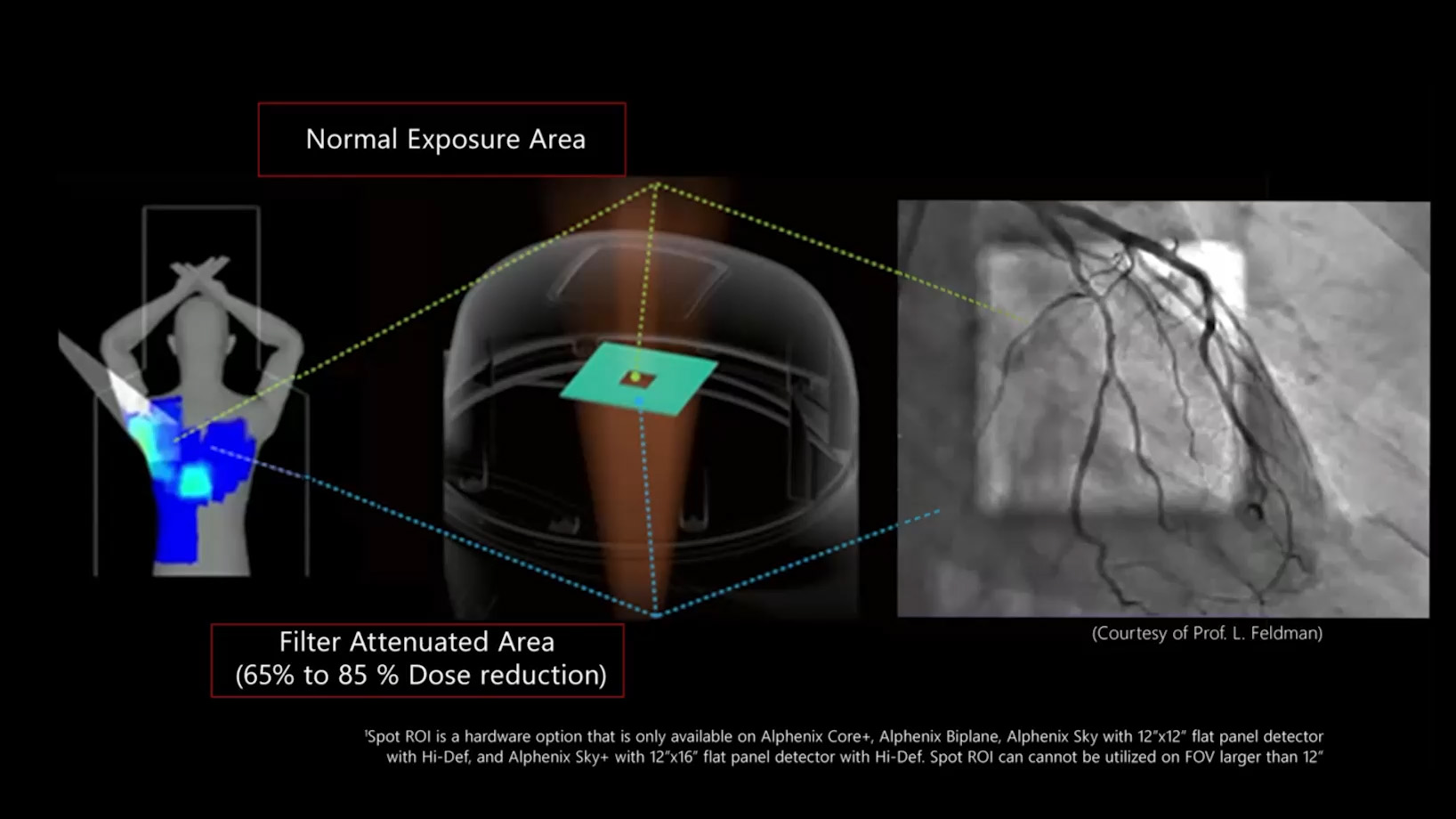

Spot ROI1
Real-time picture in picture. See beyond region of interest, with less exposure. Prioritize safe operating conditions for patients and clinical staff.
Device placement visualization does not always require full irradiation of the entire eld-of-view. Spot ROI allows the user to reduce the exposure to the peripheral region utilizing an X-Ray attenuation filter without compromising image quality within the area of interest.
- Intended to reduce the exposure dose outside of the region of interest, while accommodating peripheral region visualization
- Can be positioned over any relevant anatomy
- Available for Fluoroscopy and DA
1 Spot ROI is available on Alphenix Core + and Alphenix Biplane, Alphenix Sky with 12"x12" at panel detector with Hi-Def, and Alphenix Sky+ with 12"x16" at panel detector with Hi-Def. Spot ROI cannot be utilized on FOV larger than 12" FOV.
Clinical Examples
These results are based on the customer's specific experience. There is no guarantee that other sites will achieve the same results due to variations in clinical setting, patient presentation and other factors.
The clinical results, performance and views described in this video are the experience of the clinician. Results may vary due to clinical setting, patient presentation and other factors. Many factors could cause the actual results and performance of Canon Medical's products to be materially different from any of the aforementioned. Some products shown might not be available in all regulatory jurisdictions, please consult with your local Canon sales office for availability in your region.

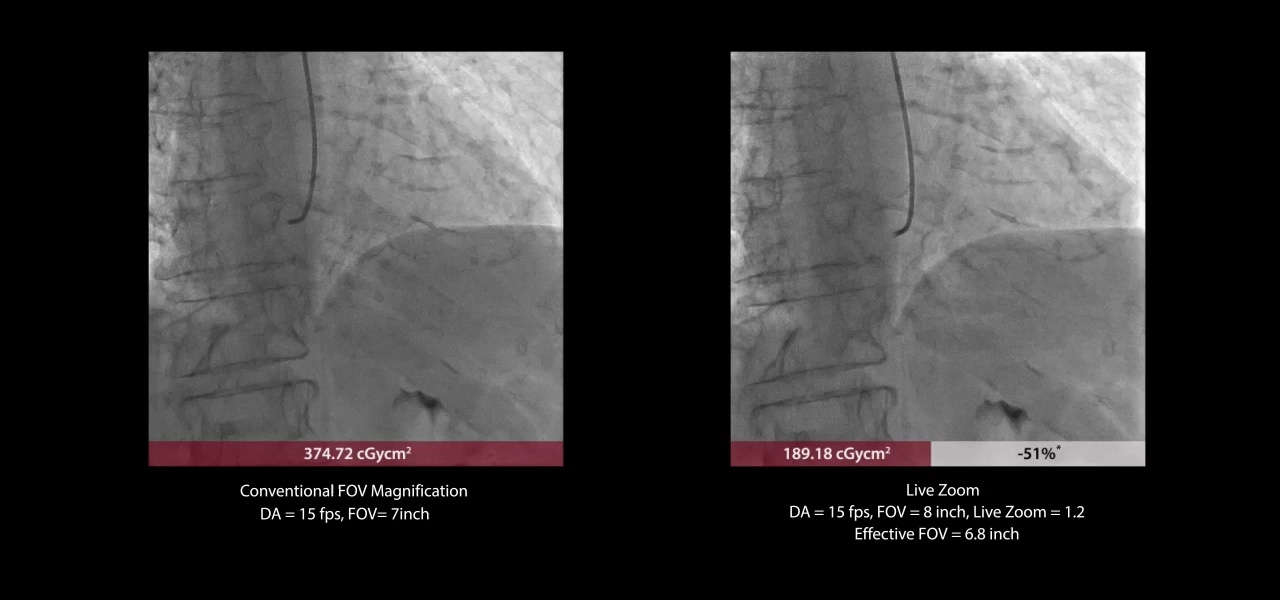

Live Zoom
Live digital zoom increases image display size in real-time during both fluoroscopy and digital acquisition (DA), without increasing dose compared to traditional field of view (FOV) magnifications. A range of digital zoom modes are offered to change image size and support advanced visualization.
The clinical results, performance and views described in this video are the experience of the clinician. Results may vary due to clinical setting, patient presentation and other factors. Many factors could cause the actual results and performance of Canon Medical's products to be materially di erent from any of the aforementioned. Some products shown might not be available in all regulatory jurisdictions, please consult with your local Canon sales office for availability in your region.
* These results are based upon the customer's specific experience. There is no guarantee that other sites will achieve the same results due to variations in clinical setting, patient presentation and other factors.

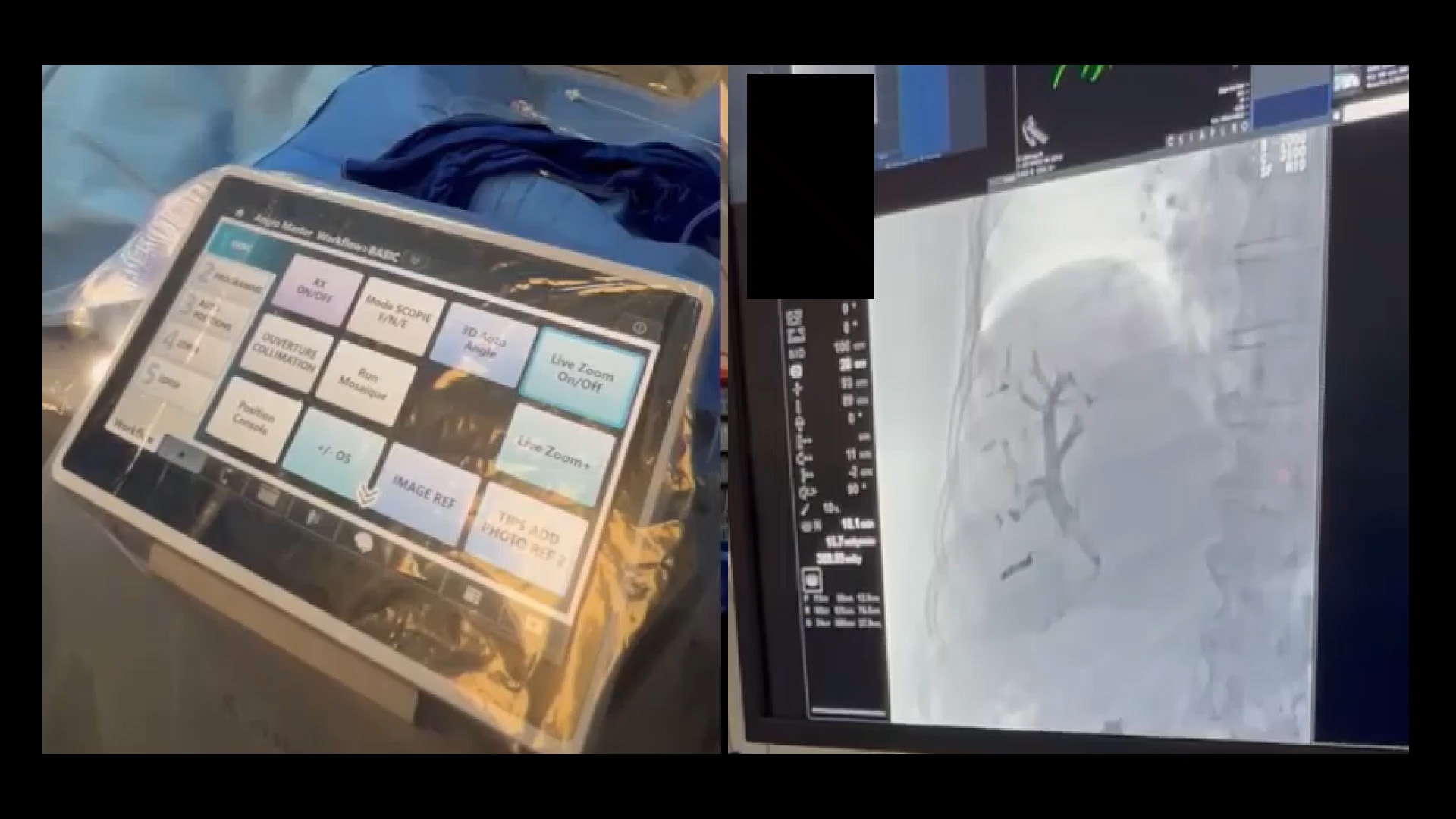

Live Zoom +
New Live Zoom + allows users to intuitively zoom in on any part of the image using just their fingertips on the new Alphenix Tablet, enhancing their workflows, and visualization.
Live Zoom + overcomes the limitation of conventional digital zoom, which was restricted to central image magnification.
